Kategori
LCD
Marka
Waveshare
Stok Kodu
1.47inch LCD Module
1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface

1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface

Gelince Haber Ver
Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ

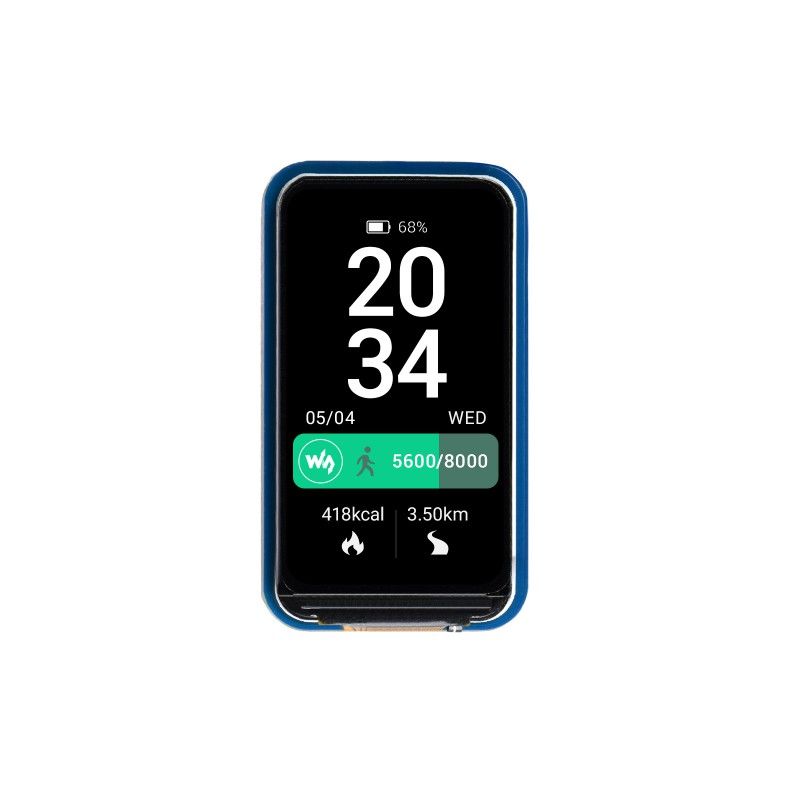

1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface
1.47inch LCD Display Module

Embedded ST7789V3 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



  • Size1.47"
    •
  • Resolution172×320
    •
  • Display Color262K RGB
    •
  • InterfaceSPI
    •
  • DriverST7789V3
Features At A Glance
                                    • 172×320 resolution, 262K RGB colors, clear and colorful displaying effect
                                    • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
                                    • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V RESOLUTION 172 × 320 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 17.39 × 32.35mm
DISPLAY PANEL IPS PIXEL PITCH 0.0337 × 0.1011mm
DRIVER ST7789V3 DIMENSIONS 22.0 × 38.5mm
Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

Hardware Connection

Connecting With Raspberry Pi


Connecting With Arduino Board

Usage Example
Outline Dimensions
Ekran Boyutu : 1.47 inch
