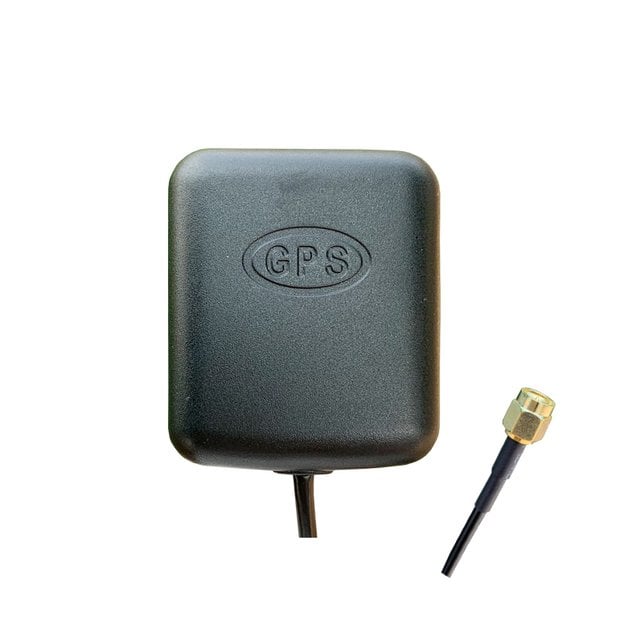

| MRTK-GPS/GLONASS-07 is a dual-band antenna covering both GPS and GLONASS frequencies. | ||
| Its proprietary filtering design allows wide band coverage while achieving superior out-of-band rejection. | ||
| This antenna comes in an all-plastic ,non-corrosive,non-corrosive low profile package for vehicle | ||
| mounting or fixed installations.This antenna is ideal for any global GPS/GLONASS tracking | ||
| or time synchronization application that requires an externally mounted antenna. |
| Electrical | ||
| Dielectric Antenna | Frequency | 1575MHz/1602MHz |
| Center Frequency | 1590MHz | |
| V.S.W.R | <1.5 | |
| Band width | ±3 MHz | |
| Impendence | 50Ω | |
| Peak Gain | 5dBic Min/1575MHz 4dBic Min/1602~1616MHz |
|
| Gain Coverage | ≥- 4dBic at -90°~90°(over75% volume) | |
| Polarization | RHCP | |
| LNA | LNA Gain(Without cable) | 28dB Typical |
| Noise Figure | 1.5dB | |
| Filter Out Band Attenuation | 12dB Min f0+50MHz 16dB Min f0-50MHz |
|
| V.S.W.R | ＜2.0 | |
| DC Voltage | 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other | |
| DC current | 11mA Max | |
| Mechanical | ||
| Weight | ＜100g | |
| Antenna Dimension | 44x38x13MM | |
| Cable | RG174 | |
| Length | 3M | |
| Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX/ MMCX or other | |
| Mount way | Magnetic | |
| Housing | Black | |
| Environmental | ||
| Operating Temperature | -40℃~+80℃ | |
| Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis | |
| Humidity | Humidity95%~100%RH | |
| Weatherproof | 100%Waterproof | |
| Antenna Radome Material | ABS | |
| RoHS Compliant | YES |
