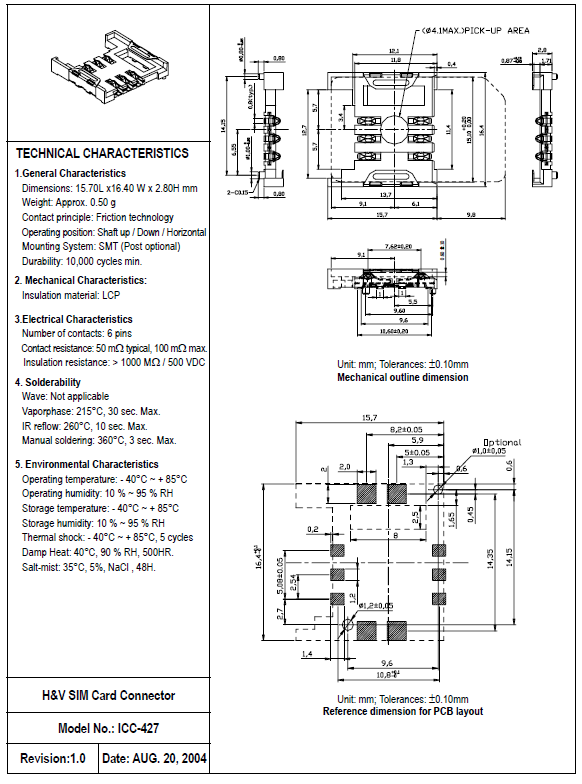

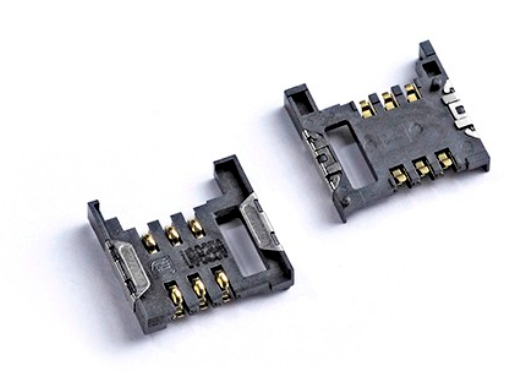

ICC-427 , 6 pin Sim Konnektör with post pins
| Status | Contact Mfr |
| Connector Type | PCMCIA CONNECTOR |
| Board Mounting Option | SOLDER HOLDING POSTS |
| Body Breadth | 0.618 inch |
| Body Depth | 0.11 inch |
| Body Length | 0.646 inch |
| Body/Shell Style | RECEPTACLE |
| Contact Gender | MALE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 100.0 mohm |
| Contact Style | COMPRESSION |
| Durability | 10000.0 Cycles |
| Insulation Resistance | 1.0E9 ohm |
| Insulator Material | LIQUID CRYSTAL POLYMER |
| Manufacturer Series | ICC |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 2 |
| Number of Ports | 1 |
| Number of Rows Loaded | 2 |
| Operating Temperature-Min | -40.0 Cel |
| PCB Contact Pattern | RECTANGULAR |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Pitch | 2.54 mm |
| Total Number of Contacts | 6 |
| Additional Feature | FRICTION TECHNOLOGY |
