| Our SMA and Open series cables can be ordered with Female Bulkhead versions or SMA Reverse Polarity | |
| connectors as well as U.FL. | |
| These cables provide a convenient connector interface for a applications printed circuit board. | |
| Other coax cable options include 1.13mm,1.37mm,RG178,RG316/RG58U LMR Cable series. | |
| The cable assemblies are available from stock in standard | |
| lengths,and custom lengths are available upon request. |
| Electrical | |
| Frequency Range | DC to 6GHz |

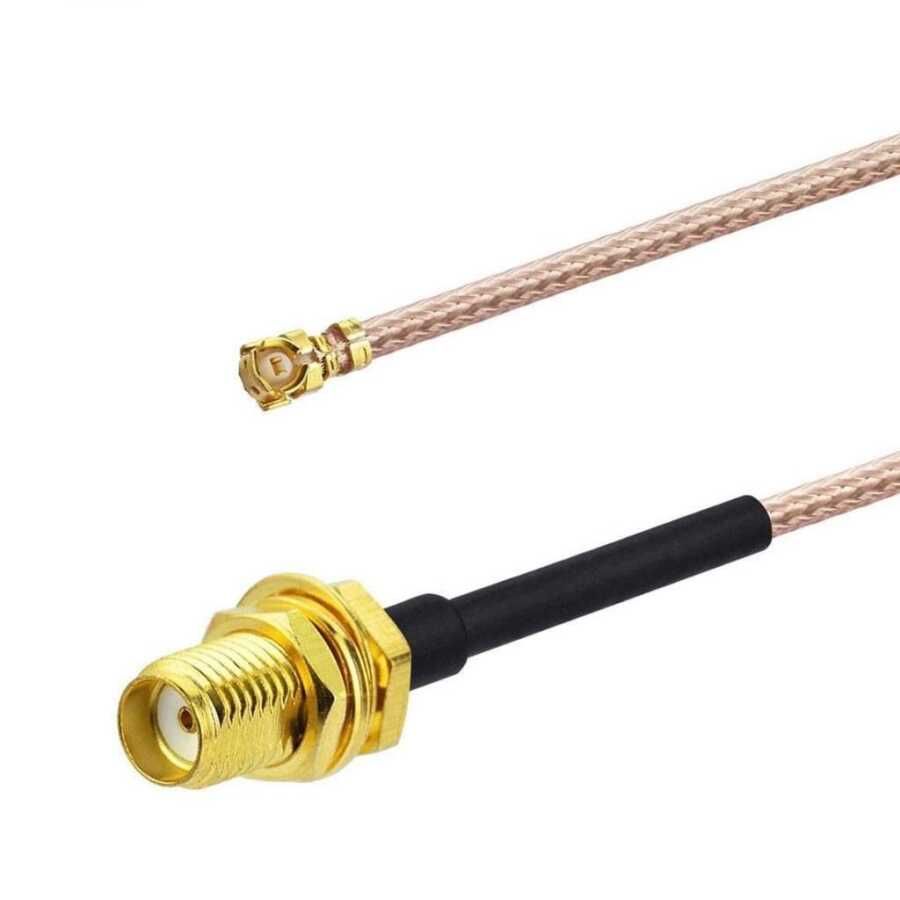

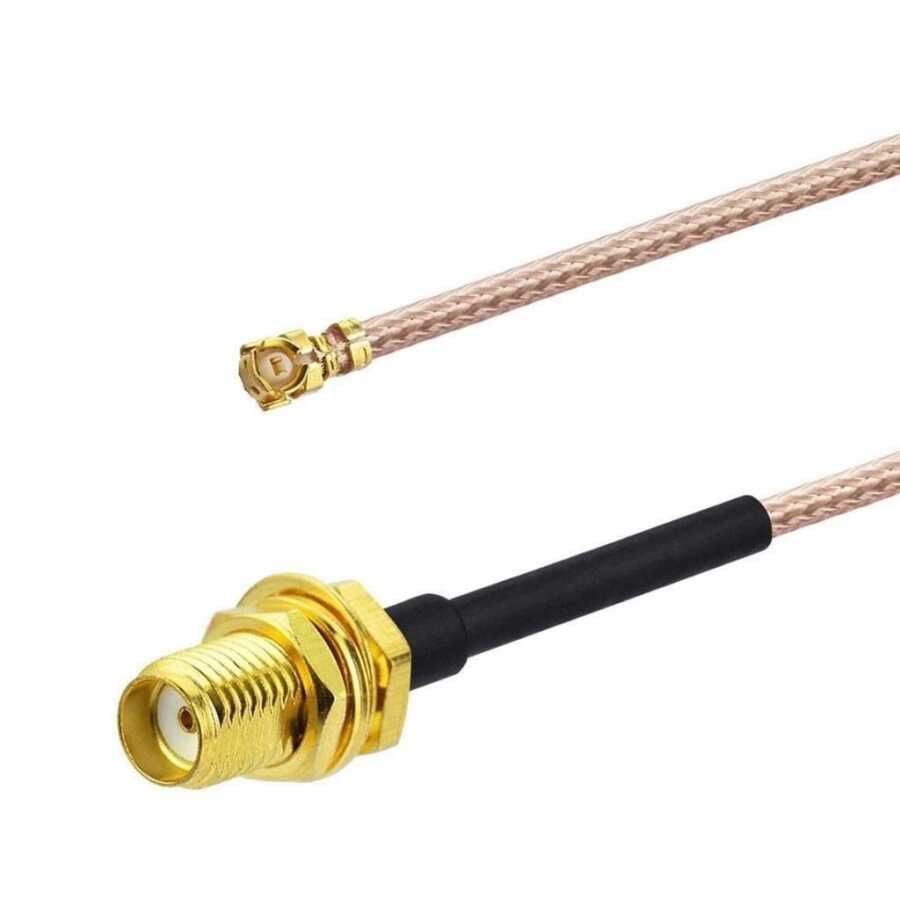

| Connector 1 | Standard SMA Female Straight |
| Connector 2 | Standard U.FL |
| Plating | Goldplated |
| RF Cable Type | RF1.13/RF1.37/RG178 ect |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |
| Kablo Türü | : | RG178 |
