Stok Kodu
MRTK-D33Y14-13

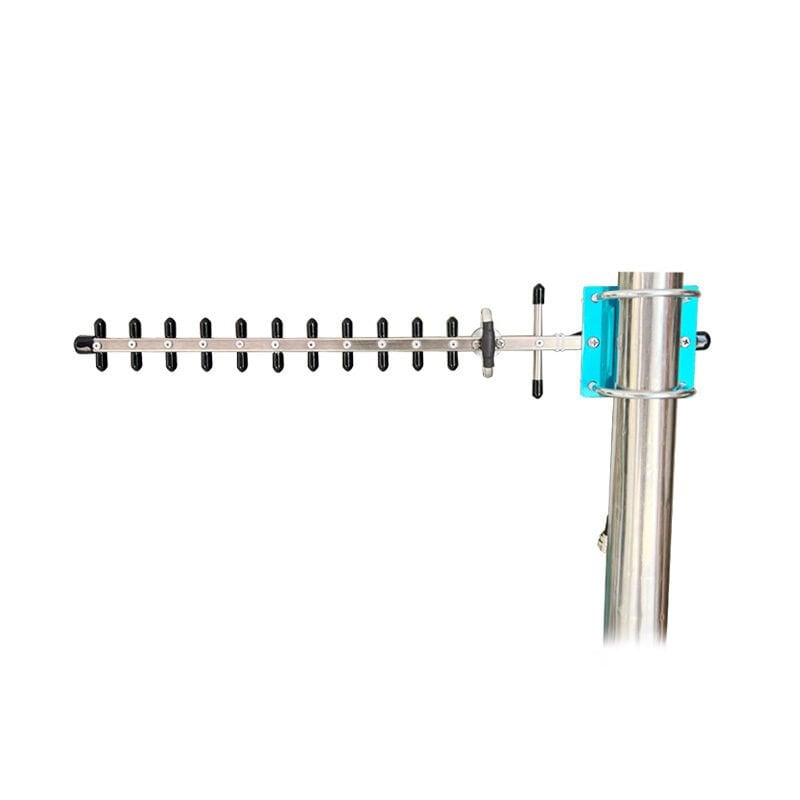

MRTK-D33Y14-13, 3300-3500 MHz Yagi Anten, 14dBi, 50cm RG58 SMA Erkek

Fiyat
46,00 USD + KDV
2.129,61 TL + KDV
This is a versatile high performance directed 3.3ghz antenna. Made of stainless steel, durable and light.
Comes with cable, convenient to use.Easy installation,looks good. This 3.3 GHz high gain directional
WiMax Yagi antenna provides 14 dBi gain for directional applications.
It is suited for 3.3 GHz band applications.Our Yagi antennas provides the user with stainless steel
boom, solid elements, low loss and Broadband operation. Can be oriented for either vertical or
horizontal polarization.
Electrical
Frequency Range  3300-3500MHz
F/B Ratio >18dB
Gain  14dBi
V.S.W.R  ≤1.5
Radiation  Direction
Horizontal Beam width 25°
Vertical Beam width  25°
Polarization  Vertical
Lightning Protection DC Grounded
Maximum Input Power  50W
Impedance 50Ώ
Connector  N Female
Cable Type RG58U
Cable Length 30cm
Antenna Radome Material stainless steel
Mount way  Pole
Diameter of Installation Pole 30-50mm
Mechanical
Dimensions 440x80x35mm
Weight 400g
Operating Temperature -40 to+80
Rated Wind Velocity  60m/s
RoHS Compliant YES
Kazanç : 14dBi
