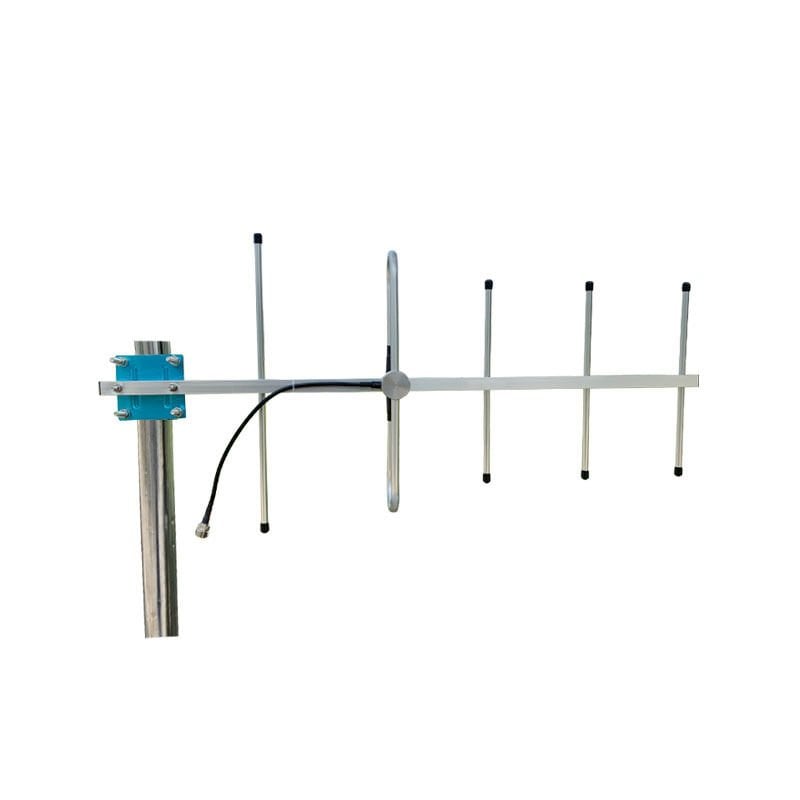

MRTK-D433Y07-05, 433MHz Yagi Anten, 7dBi,30cm RG58 N/Dişi
Fiyat
42,00 USD + KDV
1.762,64 TL + KDV
| Yagi antennas are typically very directional and are used for point to point, or to extend the range of | |
| a point to multi-point system. | |
| Our MRTK-D433Y07-05 antenna offers an extremely wide frequency range, high gain and Aluminum material. | |
| This antenna has an excellent front to back ratio to block unwanted signals and provides outstanding | |
| corrosion resistance and longevity in the harshest environments. | |
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 7dBi |
| F/B Ratio | ≥16 |
| Horizontal Beam width | 44° |
| Vertical Beam width | 40° |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Length | 30cm |
| Antenna Material | Aluminum |
| Mount way | Pole |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | 730x358x75mm |
| Weight | 450g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60M/S |
| RoHS Compliant | YES |
| Kazanç | : | 7dBi |
