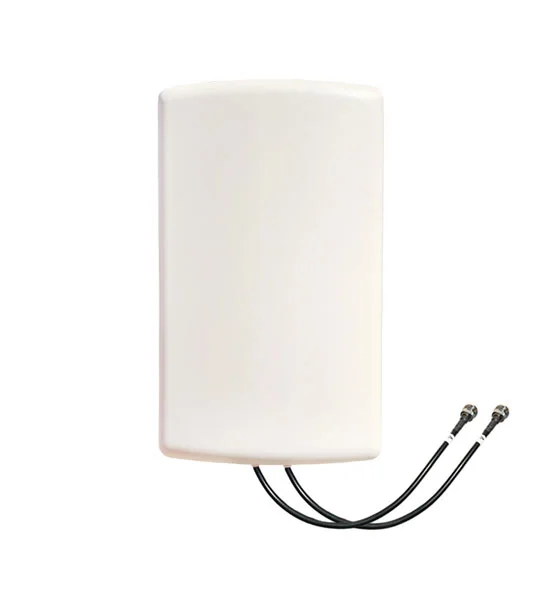

MRTK-D7038-W13X2, 5G- LTE / 4G Mimo Anten, Superbox / Modem Uyumlu , Vidalı Montaj , 9/11dBi, 30cm RG58, N-Dişi
This is 4G 5G LTE directional MIMO panel antenna.
It is a dual polarised panel antenna designed for 5G,4G, LTE, 3G and GSM frequency bands.
It has two radiating elements, one vertically polarised and one horizontally polarised, operating
from 698-960,1710-2170, 2500-2700 and 3500-4000MHz.
The directional 4G LTE MIMO panel antenna allows you to point towards the nearest cellular
tower or the strongest cellular signal source, and effectively increase the signal reception ability
for your 4G routers.
| Electrical | |
| Frequency Range | 698-960/1710-2170/2500-2700/3500-4000MHz |
| Gain | 7/10dBi |
| F/B Ratio | 15/20dB |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Horizontal Beam width | 70°/75° |
| Vertical Beam width | 75°/60° |
| Polarization | ±45° |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2XN Female |
| Cable Type | RG58U |
| Cable Length | 30CM |
| Antenna Radome Material | ABS |
| Mount way | Wall mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 300x183x70mm |
| Weight | 0.7KG |
| Operating Temperature | -40℃ to+60℃ |
| RoHS Compliant | YES |
| Kazanç | : | 9dBi, 10dBi |
