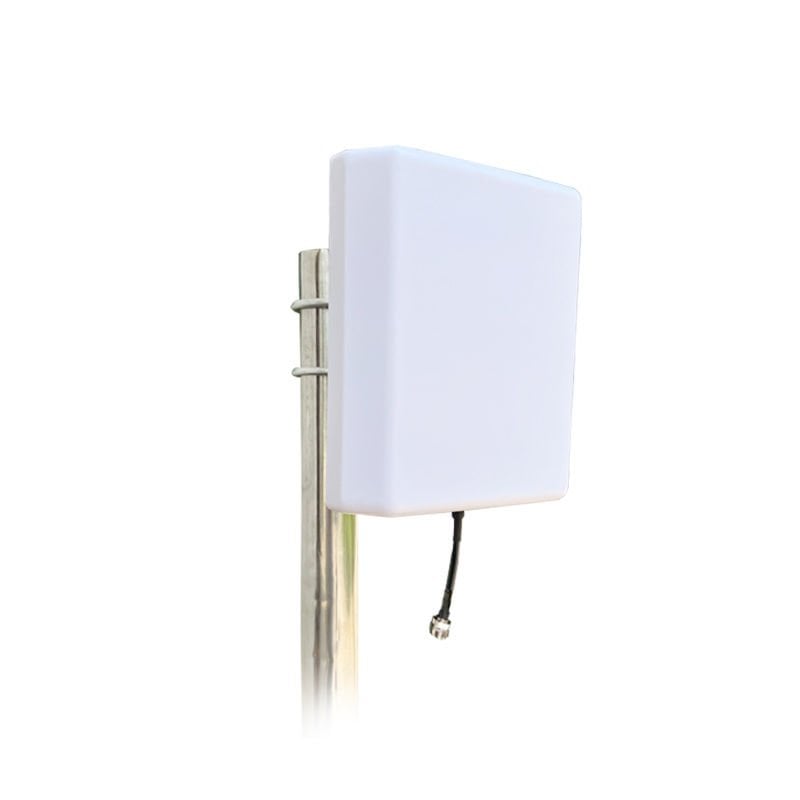

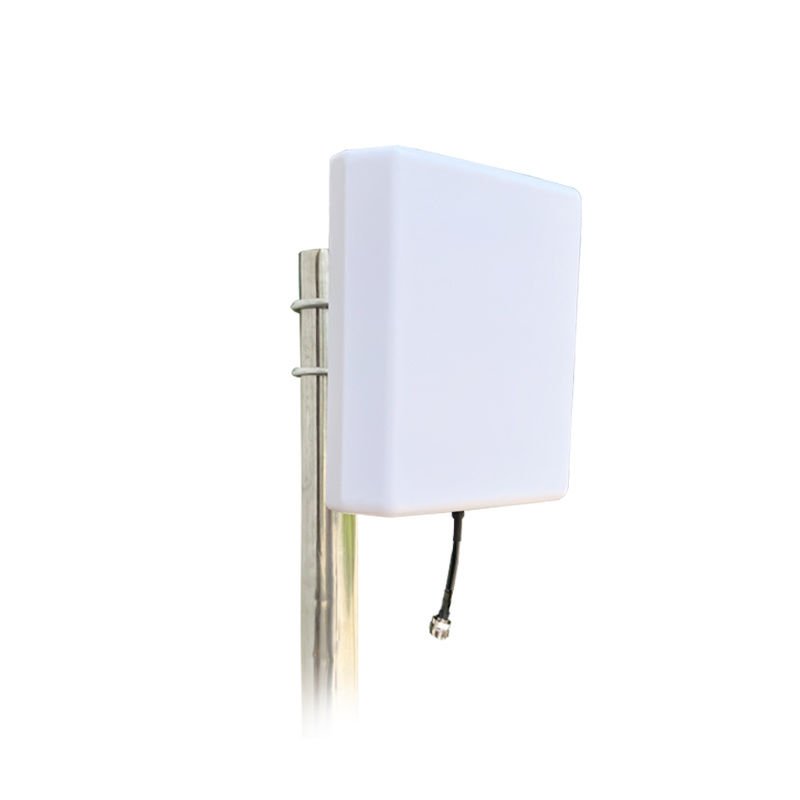

MRTK-D868W08, 868MHz Panel Yönlü RF Anten, 7dBi, 30cm RG58 Kablo, N/Dişi
With a RF directional antenna, the signal is emitted in one direction. This generates a very high,
concentrated power in the transmission and reception area.
It is a carefully designed directional antenna and built for the 865-868MHz band.
Typical applications are monitoring and digital transmission of small amounts of data.For example
Pharmaceutical industry，Access controls，Automation industry...etc
The robust, light weight construction is weatherproof which makes the antanna usable for in- and
outdoor appliances.The antenna can be designed for mast/pole or wall handle installation.
A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included.
You can select appropriate installation accessories according to your actual installation environment
| Electrical | |
| Operating Frequency | 865-868MHz |
| Band width | 3MHz |
| Gain | 7dBi |
| F/B Ratio | ≥18dB |
| Polarization | Circular |
| Horizontal Beam width | 65° |
| Vertical Beam width | 55° |
| V.S.W.R | <1.5 |
| Lightning Protection | DC Grounded |
| Radiation | Direction |
| Maximum Input Power | 100w |
| Impedance | 50Ω |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Mount way | Pole mount |
| Antenna Radome Material | ABS |
| Diameter of Installation Pole | Ø30-Ø50mm |
| Mechanical | |
| Dimensions | 207x180x45mm |
| Weight | 500g |
| Rated wind velocity(m/s) | 60m/s |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
