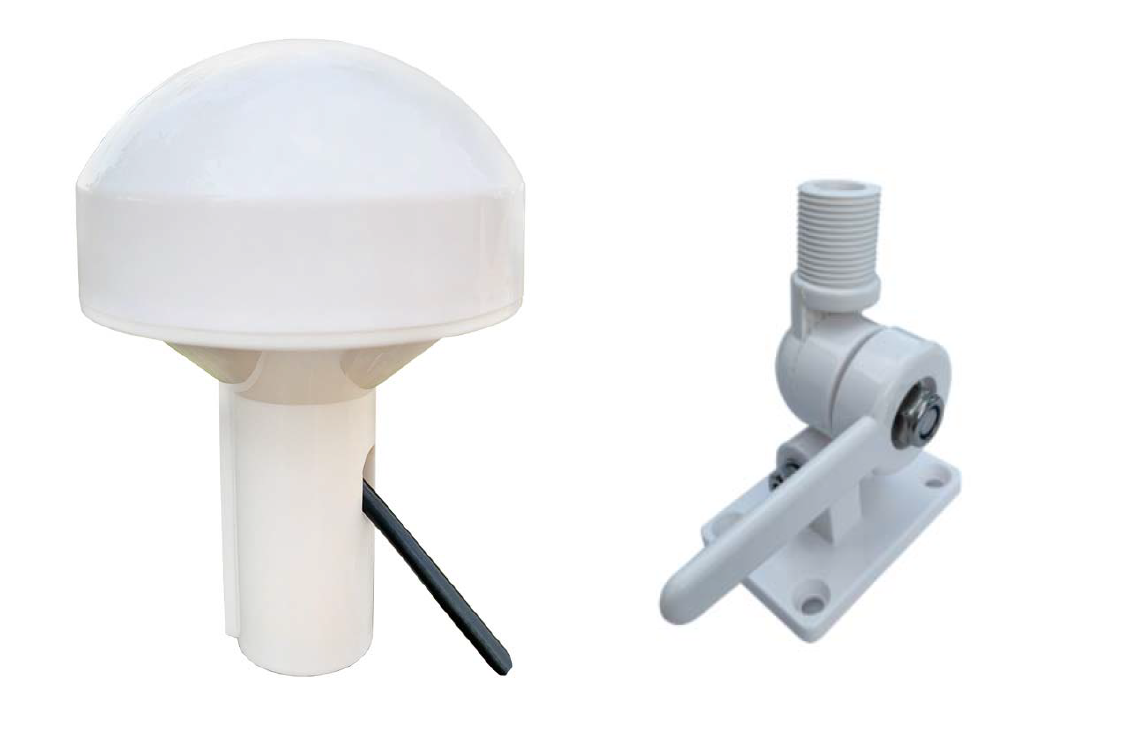

MRTK-GPS-09WB, GPS Marine Anten, 38dBi, 5 metre RG58U, SMA Erkek
Fiyat
60,00 USD + KDV
2.306,25 TL + KDV
| GPS white marine antenna is designed for boat which require high positioning accuracy by GPS | |
| signals, it is durability antenna for outdoor or indoor use. | |
| The active marine antenna is designed for long life in challenging environments.The radome is molded | |
| of ABS resin for excellent weatherability. | |
| Antenna cables and connectors are fully customizable. |
| Electrical | |
| Frequency Range | 1575.42MHz±3MHz |
| Polarization Type | RHCP |
| Impedance | 50Ω |
| LNA Gain | 38dB |
| Noise Figure | 1.5dB |
| V.S.W.R | <1.5 |
| DC Voltage | 2.2-5.0V |
| DC current | 5-15mA |
| Housing | White |
| Cable | RG58U |
| Length | 3M |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| Mount way | Screw |
| Mechanical | |
| Size | Φ96x126mm |
| Weight | 252g |
| Operating Temperature | -40℃~+80℃ |
| Relative Humidity | 55%-75%RH |
| Waterproof | IP67(Not include the line port) |
| RoHS Compliant | YES |
