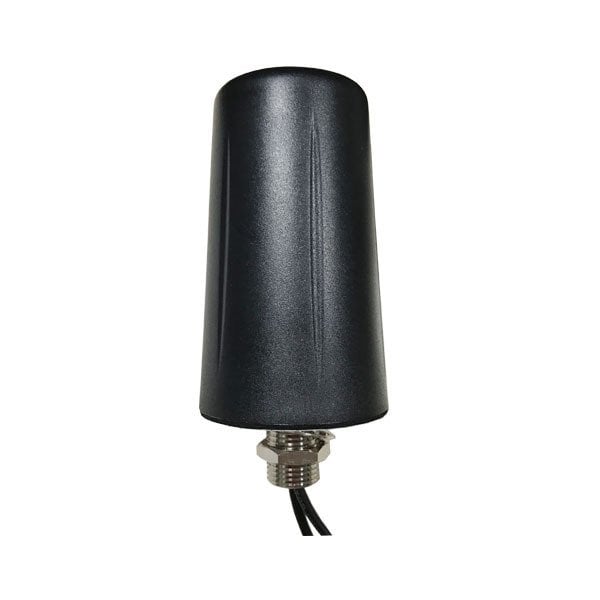

This M2M antenna provides optimal 4G LTE MIMO coverage in a single, extra low-profile housing. Its compact footprint makes this antenna ideal for installation on surfaces with limited surface space,including leading public safety vehicle rooftops and many machine-to-machine applications. No tune, multi-band coverage: dual 4G LTE, 802.11ac Wi-Fi and GSM/3G frequencies.IP67 compliant design provides maximum protection against water or dust ingress under Extralow-profile, UV-resistant black or white housing options complement most vehicular aesthetic requirements
| Electrical | |
| Frequency range | 698-960MHz/1710-2700MHz |
| V.S.W.R | 2.0:1 |
| Gain | 3dBi |
| V.S.W.R | ≤2.5 |
| Polarization | Linear |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| WIFI Part: | |
| Frequency range | 2.4/5GHZ |
| V.S.W.R | ≤2.5 |
| Gain | 3dBi |
| Polarization | Linear |
| Impendance | 50Ω |
| Mechanical | |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 2x3M-5M |
| Antenna Radome Material | ABS |
| Mount way | Screw |
| Dimensions | Φ48x82mm |
| Weight | 160g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
