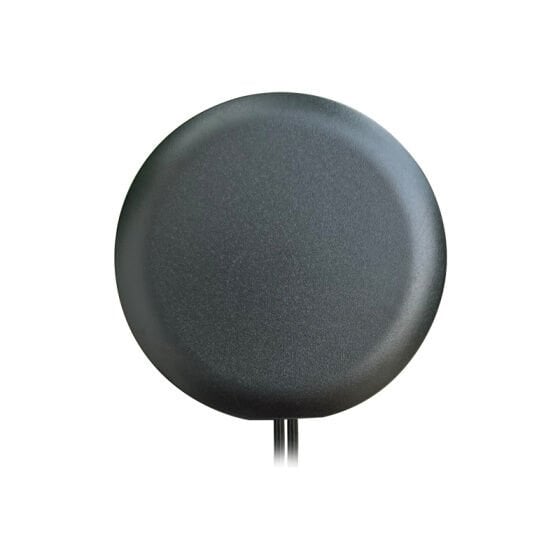

MRTK-LTEX2-01/20, LTE / 4G Mimo Anten, 3dBi, 3m RG174, Manyetik ve 3M Bantlı, SMA-Erkek
Fiyat
36,00 USD + KDV
1.610,95 TL + KDV
The multi band antenna can be mounted on roof of the vehicle or on electrical cabinet (e.g. vending machine, passenger information system)
This antenna provides 2 ports 4G/ LTE combined in an antenna, Housed in a rugged low profile ABS resistant,this antenna is compact and resistant to Vandalism.
This antenna for 4G/LTE applications where high performance is required from small size.
You can choose the appropriate installation method according to the actual use environment
| Electrical | |
| Frequency Range | 2x 698-960/1710-2700MHz |
| Gain | 2x3dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Linear |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2xSMA Male |
| Cable Type | 2xRG174 |
| Cable Length | 3m standard ,fully customizable |
| Antenna Radome Material | ABS |
| Mount way | Magnetic Mount / 3M Band |
| Mechanical | |
| Working Temp | -40℃~+85℃ |
| Humidity | 55%-75%RH |
| Waterproof | IP67 |
| Antenna Radome Material | ABS |
| Antenna Dimension | Ф80x20 mm |
| Weight | 90g |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
