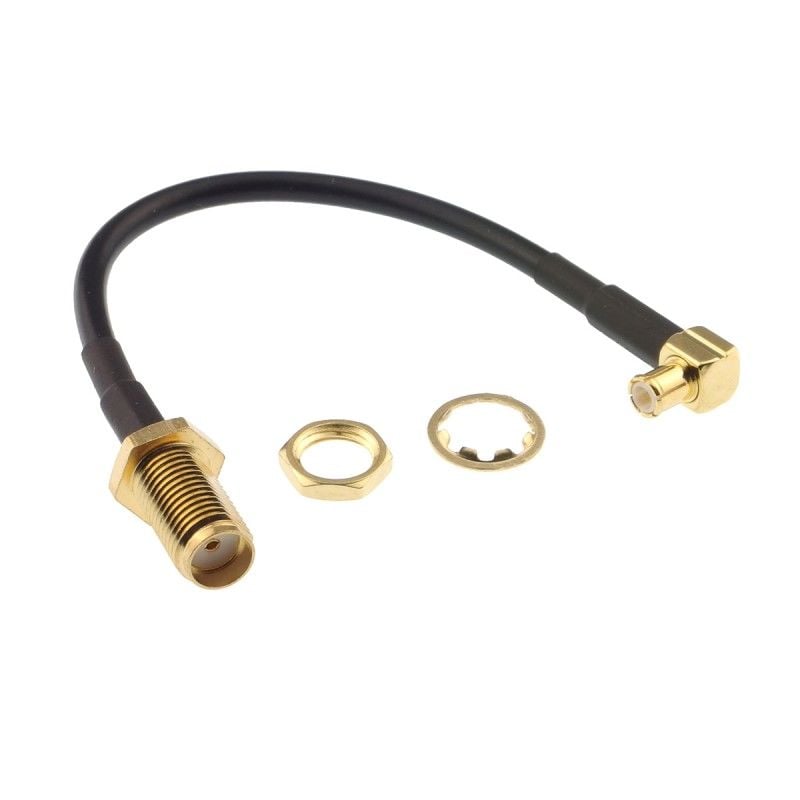

MCX Erkek (90derece) to SMA Dişi, 1.13 Kablo
Fiyat
4,50 USD + KDV
211,82 TL + KDV
Our MCX between series cables can be ordered as well as an SMA female option.
These cables provide a convenient connector interface for a applications printed circuit board.
Other coax cable options include 1.13mm,RG174,RG178,RG316 series.
The cable assemblies are available from stock in standard
lengths,and custom lengths are available upon request.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | Standard MCX Male Right Angle |
| Connector 2 | Standard SMA Female Straight |
| Plating | Goldplated |
| RF Cable Type | RF1.13 |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |
| Kablo Türü | : | 1.13 Cable |
Satın aldığıma memnunum
Aslında adaptörünü istemiştim, ama Türkiye içinde uygun fiyatlı bunu bulunca satın aldım. MCX tarafının 90 derece dönük olması umduğumdan daha çok işime yaradı. Satın aldığıma memnunum.
Kemal ASLAN | 10/12/2024
| 10cm
