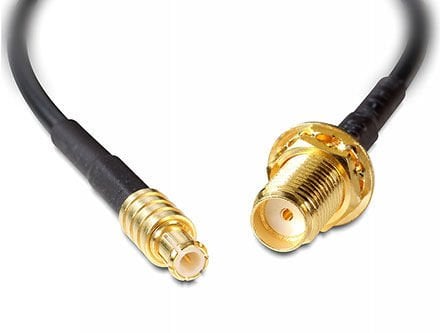

MCX Erkek (180derece) to SMA Dişi, 1.13 Kablo
Fiyat
4,50 USD + KDV
188,85 TL + KDV
Our MCX between series cables can be ordered as well as an SMA female option.
These cables provide a convenient connector interface for a applications printed circuit board.
Other coax cable options include 1.13mm,RG174,RG178,RG316 series.
The cable assemblies are available from stock in standard
lengths,and custom lengths are available upon request.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | Standard MCX Male Straight |
| Connector 2 | Standard SMA Female Straight |
| Plating | Goldplated |
| RF Cable Type | RF1.13 |
| Cable length | 100mm |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |
| Kablo Türü | : | 1.13 Cable |
