MRTK-Q2458-9B, 2.4-5.8GHz Wifi Anten , 9dBi, RP/SMA-Erkek
Fiyat
13,00 USD + KDV
553,15 TL + KDV

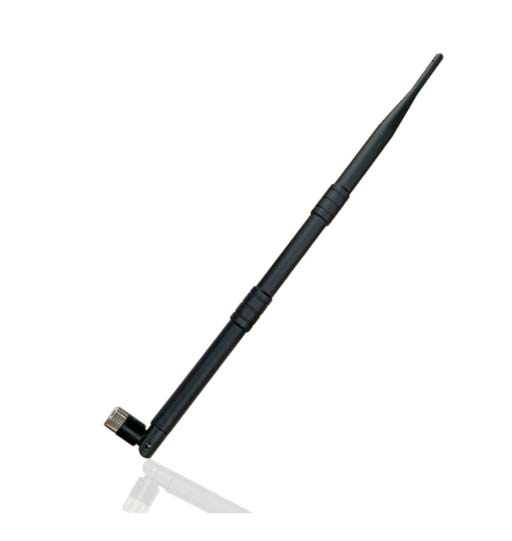

The dipole Antenna is primarily designed for use with WIFI modules.
It does not require a ground-plane to connect to. It has a quality robust TPE housing for use with
wireless terminals.
The antenna has a RP SMA(M) connector.
The antenna has a wide-band response and can also be used from 2400-5800MHz applications
| Electrical | |
| Frequency Range | 2400-2483/5150-5250/5750-5850MHz |
| Gain | 9dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | RP SMA Male |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x380mm |
| Weight | 46g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 9dBi |
