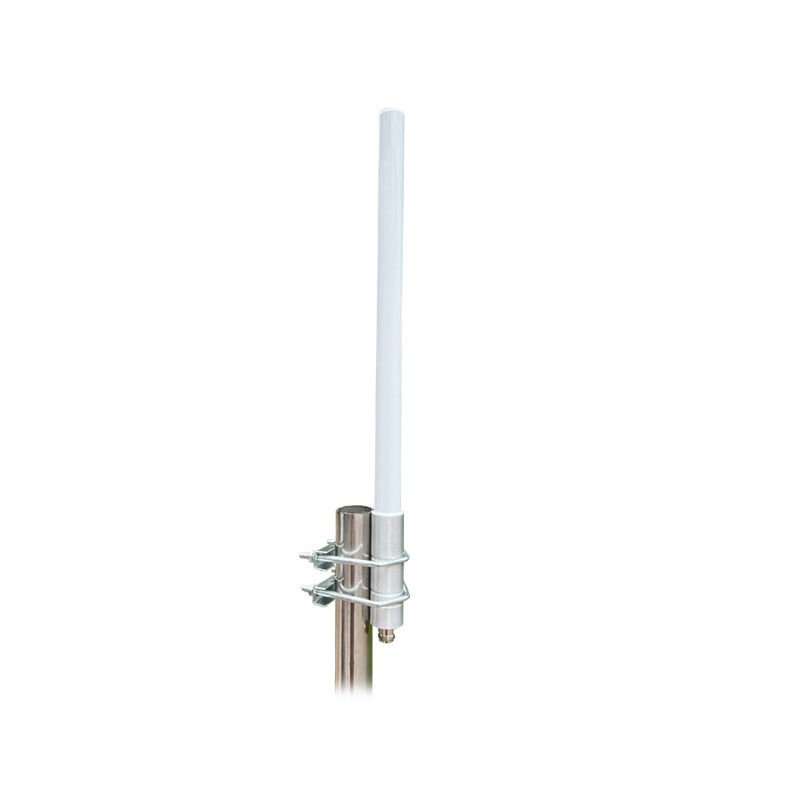

MRTK-Q2458F08, 2.4-5.8GHz Wifi Anten , 8dBi, N Dişi
Fiyat
70,00 USD + KDV
3.013,06 TL + KDV
This omnidirectional WiFi MIMO antenna is designed for the 2.4&5 GHz frequency band .
The enclosure of the antenna is made of heavy fiberglass.
The robust, light weight and UV resistant construction is weatherproof which makes the antenna usable
for in- and outdoor appliances.
The antenna is designed for mast/pole or wall handle installation .
A mounting kit installation(angle bracket and u-clamp for 30-50mm diameter handles) is included.
| Electrical | |
| Frequency Range | 2400-2483/5150-5850 MHz |
| Band width | 83/700MHz |
| Gain | 8dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 22° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Diameter of Installation Pole | Φ40-Φ50 mm |
| Mechanical | |
| Antenna Dimension | Φ25x680mm |
| Weight | 330g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 8dBi |
