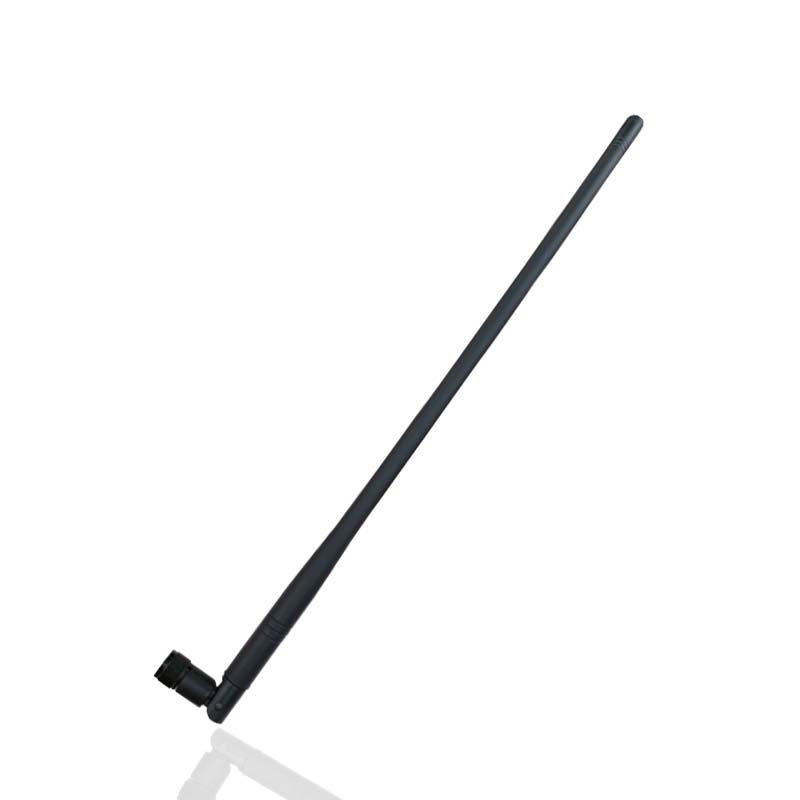

This is a high performance 433MHz LoRa Terminal mount antenna。
It can be mounted straight due to its hinged SMA(M) connector which comes as standard.
This antenna performs very well in free space, making it an ideal solution in areas where there may
be no ground plane.
Typical Applications include:Smart Metering ,Remote Monitoring, Industrial IoT ,Connected Enterprise
This distinctive and attractive rod antenna is ground plane independent, meaning it does not need to
be connected to the ground-plane of a device to radiate efficiently. On the other hand, the unique
cylindrically rod housing makes it better coordination with a device, thus avoiding a common problem
to slim-line PCB antennas causing seriously detuned by connecting to a device.
| Electrical | |
| Operating Frequency | 433MHz |
| Bandwidth | ±3MHz |
| Gain | 7dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector Type | SMA Male |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x430mm |
| Weight | 55g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 7dBi |
