MRTK-Q433I481

MRTK-Q433I481, 433MHz RF Anten , 5dBi , 3m RG174 kablo , SMA / Erkek

Fiyat
6,50 USD + KDV
263,85 TL + KDV

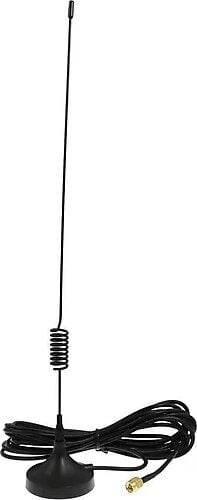

High quality and durable high gain omnidirectional 481mm long antenna with 3meter coaxial cable and SMA connector.433MHz is a commonly used frequency band for all types of equipment that require little power, such as garage door openers, headphones, baby monitors and remote controls Omnidirectional antennas are used in most consumer RF wireless devices, including cellular telephone handsets and wireless routers.Designed with a magnetic base. The antenna can be placed on any iron surface horizontally or vertically. However, the vertical position is recommended for better signal 3meter coaxial cable with SMA connector for easy connection, so no extension is needed

2. Specification



Electrical



Frequency Range

433MHz

Gain

5dBi

V.S.W.R

≤2.0

Radiation

Omni-Direction

Polarization

Vertical

Maximum Input Power

50W

Impedance

50Ώ

Connector

SMA Male(can be customization)

Cable Type

RG174

Cable Length

3M

Antenna Radome Material

Steel

Mounting way

Magnetic Mount

Mechanical



Dimensions

Φ29x481mm

Weight

50g

Operating Temperature

-40 to+70

RoHS Compliant

YES

Kazanç : 5dBi
