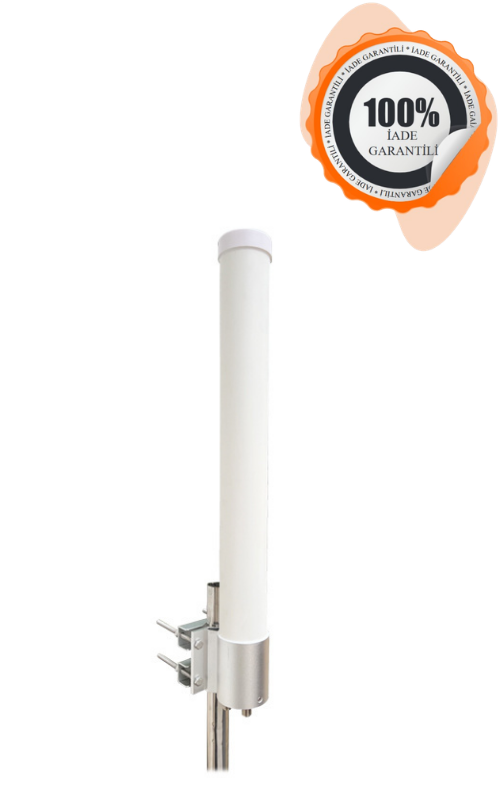

MRTK-Q6060F05X4DP, 5G - 4G ; 4 Çıkışlı Yönsüz Mimo Anten, Superbox / Modem Uyumlu , 5dBi, N-Dişi

Fiyat

250,00 USD + KDV

11.573,95 TL + KDV

SEPETE EKLE HEMEN AL

This is a high-performance omnidirectional antenna designed specifically for the next generation of
communication networks. Its core advantage lies in its ultra wide frequency band coverage of 698-2700
MHz,which is fully compatible with all current mainstream LTE frequency bands.
Through the innovative design of vertically separated radiation units within a single enclosure,this
antenna achieves 4×4 MIMO technology, ensuring precise control of signal radiation patterns across the
entire frequency band while significantly improving data transmission efficiency and network stability.
Whether deployed in densely populated urban areas or commercial complexes,our MRTK-Q7027F03X4
can provide reliable signal reception worldwide and proactively support LTE Band71 (698-698MHz),
LTE frequency bands (1700-2700MHz) leaving ample space for future network technology upgrades.

Electrical
Frequency Range	600-960/1710-6000MHzX4
Gain	5dBiX4
Horizontal Beam width	360°
Vertical Beam width	21°
V.S.W.R	600-960MHz≤4.5;1710-6000MHz≤1.8
Radiation	Omni-Direction
Polarization	Vertical & Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	4xN Female
Antenna Radome Material	PVC
Mounting way	Pole
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	Φ75x850mm
Weight	2.5KG
Operating Temperature	-40℃ to+80℃
Rated wind velocity(m/s)	60m/s
RoHS Compliant	YES
