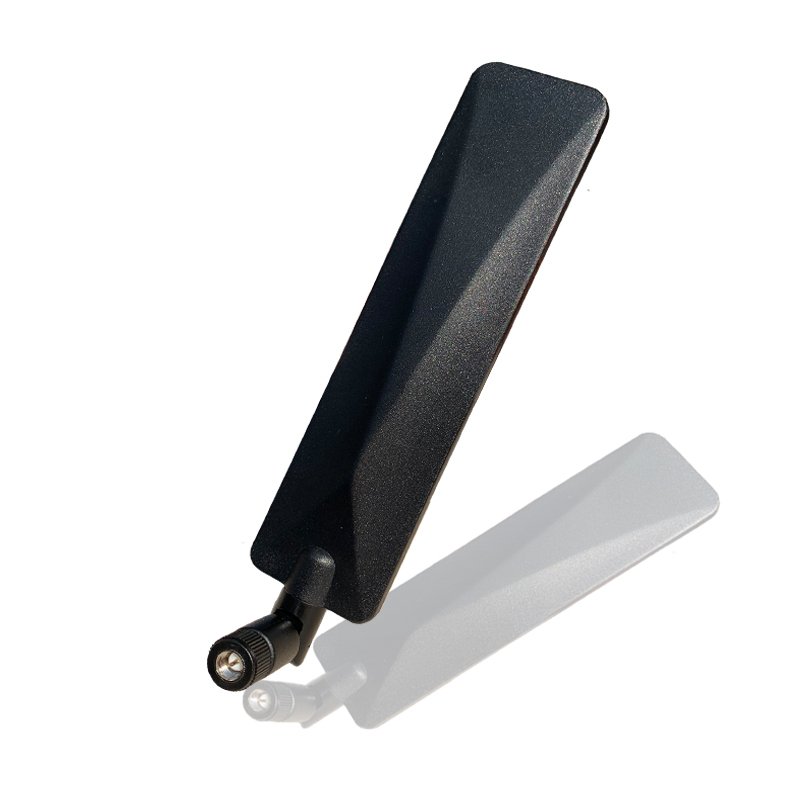

MRTK-Q7027-BY, LTE Antenna, 3dBi, SMA/Male
| This is a 5G/4G monopole Ultra-Wideband Omni-Directional antenna. | |
| It is primarily designed for use with 4G LTE modules and devices ,Its high efficiency across the ultra | |
| wide band and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, | |
| UMTS,WI-FI and even has GPS included for assisted GPS applications. | |
| With very high efficiency on every cellular band globally it is an ideal solution for any device requiring | |
| high, reliable performance. | |
| The antenna is a ground plane independent antenna with a SMA (M) connector and swivel mechanism | |
| that allows the antenna part to be rotated. | |
| The antenna blade can swivel 90 degrees from the connector accommodating different installation | |
| configurations. | |
| Electrical | |
| Frequency Range | GPS:1575.42MHz 3G:900/1800/1900/2100MHz 4G:698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.5;Max3.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| Mechanical | |
| Dimensions | 196x38x11mm |
| Weight | 38g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
