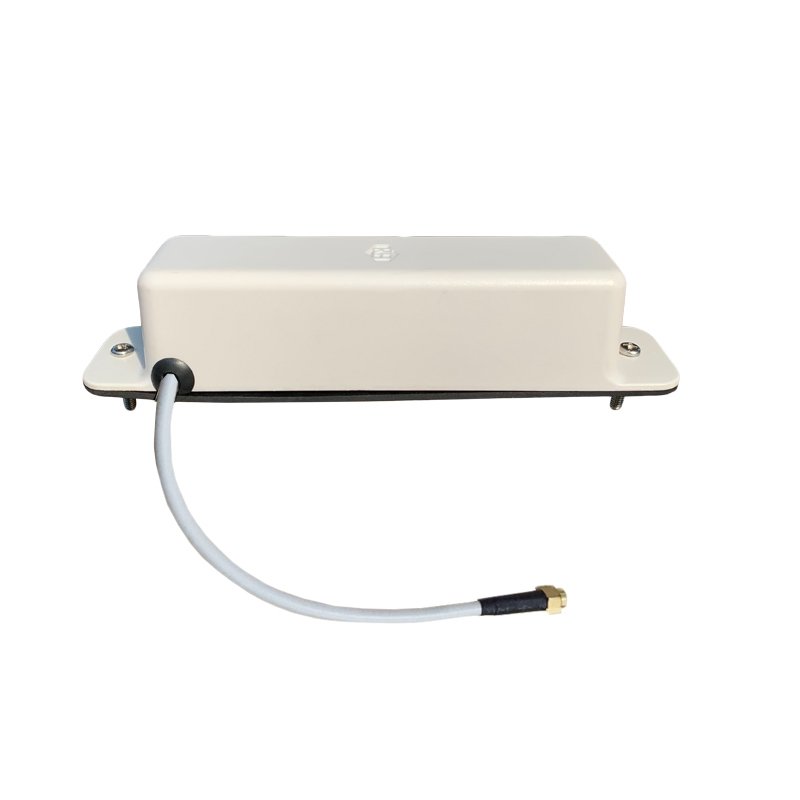

MRTK-Q7027-KH-2 LTE / 4G Anten , Vidalı Montaj , 3dBi, 3m RG174, SMA-Erkek
Fiyat
25,00 USD + KDV
1.049,19 TL + KDV
| The antenna delivers stable high omni-directional waterproof antenna and across all 2G/3G/4G/5G | |
| cellular lte antenna operating at Band 71, staring at 698-960 MHz, CBRS and 2700 MHz | |
| Being Wall mount it is designed to be mounted on a wall plane for optimal performance | |
| This is a wideband permanent mount antenna with low cost hige performance screw mount. | |
| At only 34mm high and protected by a robust high impact radome the antenna is almost impervious to | |
| daily wear and tear.It has been designed to be used on a ground plane. | |
| It can be used in mobile and fixed applications for 4G/5G LTE wireless such as: | |
| Public safety,Utilities ,smart cities,Fleet management,Precision agricultural,Industrial applications | |
| This antenna has superior performance over wide bands compared to traditional whip antennas. |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174/RG58U |
| Cable Length | 2M |
| Antenna Radome Material | ABS |
| Mount way | Wall Mount |
| Mechanical | |
| Dimensions | 170x37x34mm |
| Weight | 194g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 10dBi |
