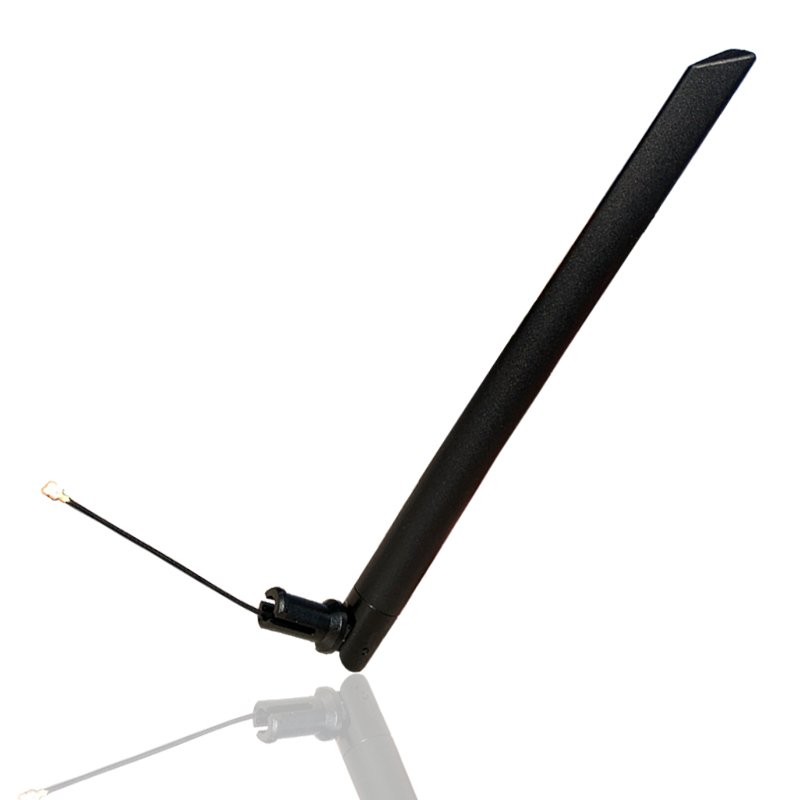

MRTK-Q7027-L20FBW, LTE Antenna, 5dBi, IPEX,10cm 1.13 cable
| It is a 4G LTE Terminal Antenna designed for fixed and mobile 4G LTE terminal products such as | |
| routers,modems and gateways ,captive mount terminal antenna designed for fixed and mobile | |
| terminals where the antenna cannot be easily removed | |
| multiband multi-position, articulating, 4G LTE captive mount terminal antenna for modems, routers | |
| and devices that are running a radio module with U.FL connectors. | |
| We offers a terminal mount antenna solution without the need to use a bulkhead (or panelmount) SMA | |
| connector on the enclosure. It has articulating base that locks in 3 positions, vertical, horizontal | |
| and at 45 degrees. | |
| The antennas mount by way of block out . Through the middle of the stud a coaxial cable | |
| feeds the antennas via an IPEX (U.FL compatible) connector. |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 5dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x195mm |
| Weight | 13g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 5dBi |
