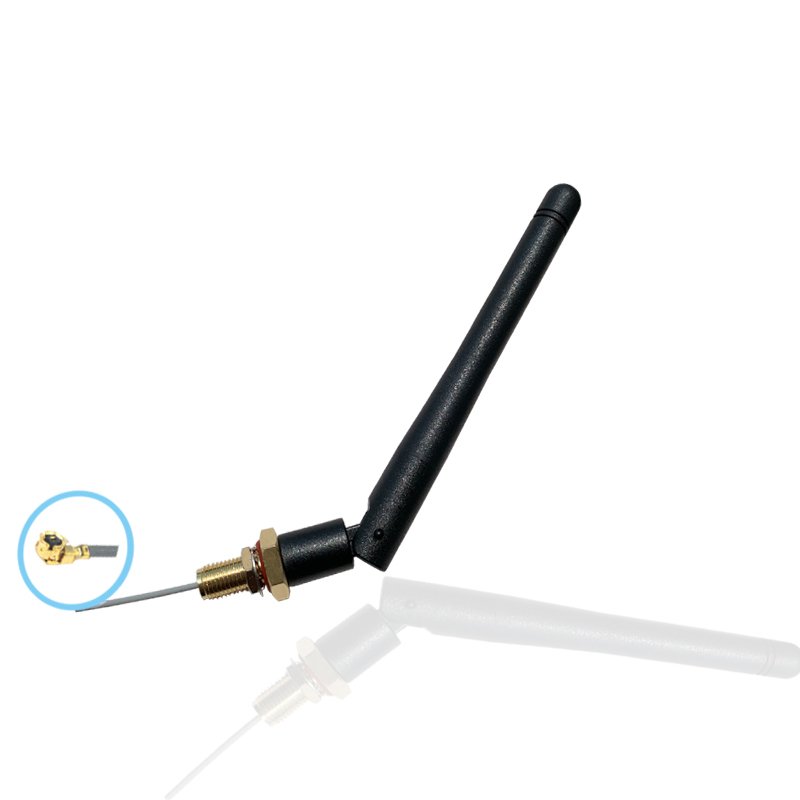

MRTK-Q7027-L24WSB, LTE Antenna, 2.5dBi, IPEX,10cm 1.13 cable
| The dipole Antenna is primarily designed for use with 4G/LTE modules. | |
| It does not require a ground-plane to connect to. It is ideal for 4G/LTE applications. | |
| At only 110mm in length, Omni-directional 2.5dBi gain across all bands ensures constant reception | |
| and transmission. | |
| The antenna structure is designed for robust handling and the housing is made with TPE giving | |
| superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees | |
| on the base hinge for ease of placement. |
| Electrical | |
| Frequency Range | 698-960/1700-2700MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10CM |
| Antenna Radome Material | TPE |
| Mount way | Screw |
| Mechanical | |
| Dimensions | Φ8x110mm |
| Weight | 10g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 2.5dBi |
