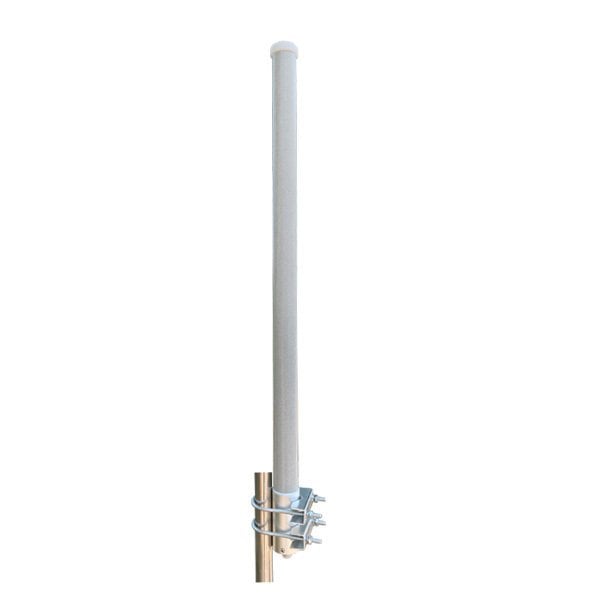

MRTK-Q7027F10, LTE Fiberglass Omni-Direction Antenna, 10dBi, N/Female
| This antenna is ideal for downtown urban settings, RV’s or marine installations. | |
| It’s built with a strong fiberglass casing and is designed to cover 698-2700MHz Wideband. | |
| The Fiberglass antenna is an omni-directional antenna that gathers signals from all sides and does not | |
| need to be pointed toward a cellular tower. Parts includes mounting equipment for either a flat | |
| horizontal surface or a wall. | |
| be mounted in an upright position for best results. |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 8/10dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Colour | Grey |
| Mechanical | |
| Dimensions | Φ52x1050mm |
| Weight | 2KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 10dBi |
