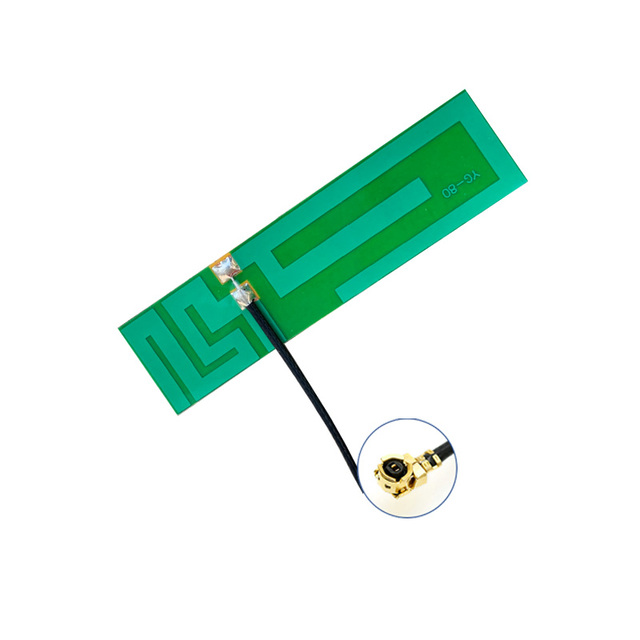

MRTK-Q7027N30, LTE / 4G Esnek Anten, 3dBi, IPEX,
Fiyat
3,90 USD + KDV
166,18 TL + KDV
| That 50-ohm impedance wideband antenna has been designed to cover all working frequencies in the | |
| 698-2700MHz spectrum, including all Cellular, Wi-Fi, ISM and GNSS bands. | |
| Its use in a device improves substantially the radiated power and sensitivity and enables the highest | |
| throughput rates of today’s broadband devices. | |
| Ground-plane independent, with a cable and connector for easy installation is designed to be mounted | |
| directly onto a plastic or glass enclosure/cover. |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 64x16x0.2mm |
| Weight | 5g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
