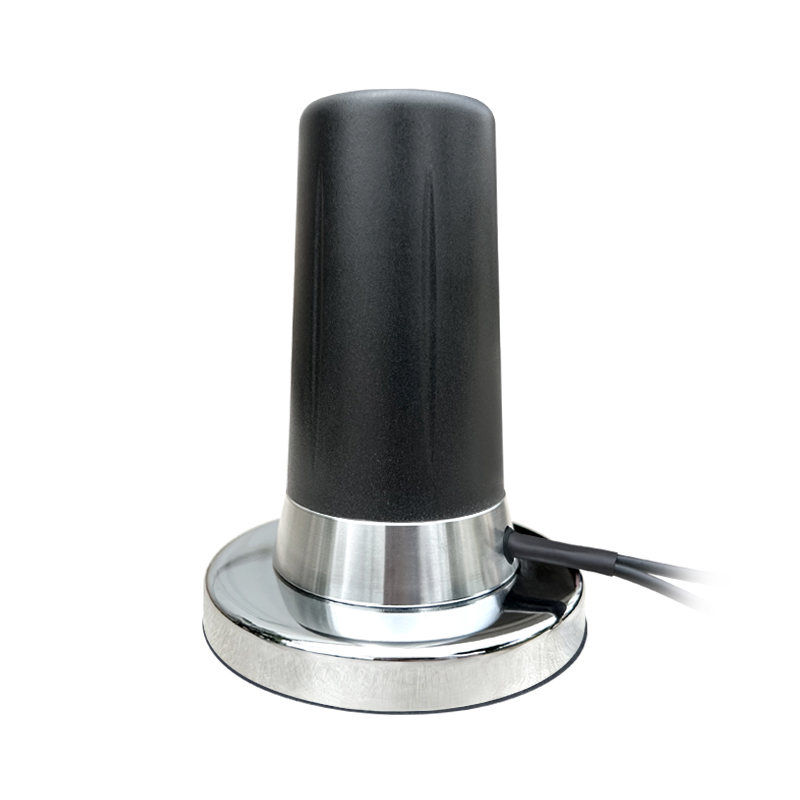

MRTK-Q7060-DLX2, LTE+LTE Combo Mimo Antenna, SMA/M, 5dBi
| This M2M antenna provides optimal 4G 5G LTE MIMO coverage in a single, extra low-profile housing. | |
| Its compact footprint makes this antenna ideal for installation on surfaces with limited surface space, | |
| including leading public safety vehicle rooftops and many machine-to-machine applications. | |
| No tune, multi-band coverage: dual 4G 5G LTE, 802.11ac Wi-Fi and GSM/3G frequencies | |
| IP67 compliant design provides maximum protection against water or dust ingress under | |
| Extra low-profile, UV-resistant black or white housing options complement most vehicular | |
| aesthetic requirements |
| Electrical | |
| Frequency Range | 2X698-960/1710-2700/3300-3800/4000-6000MHz |
| Gain | 2X5dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2XSMA Male(Custom) |
| Cable Type | 2XRG174 |
| Cable Length | 2X3M |
| Antenna Radome Material | ABS |
| Mount way | Magnetic |
| Mechanical | |
| Dimensions | Φ87x110mm |
| Weight | 490g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 5dBi |
