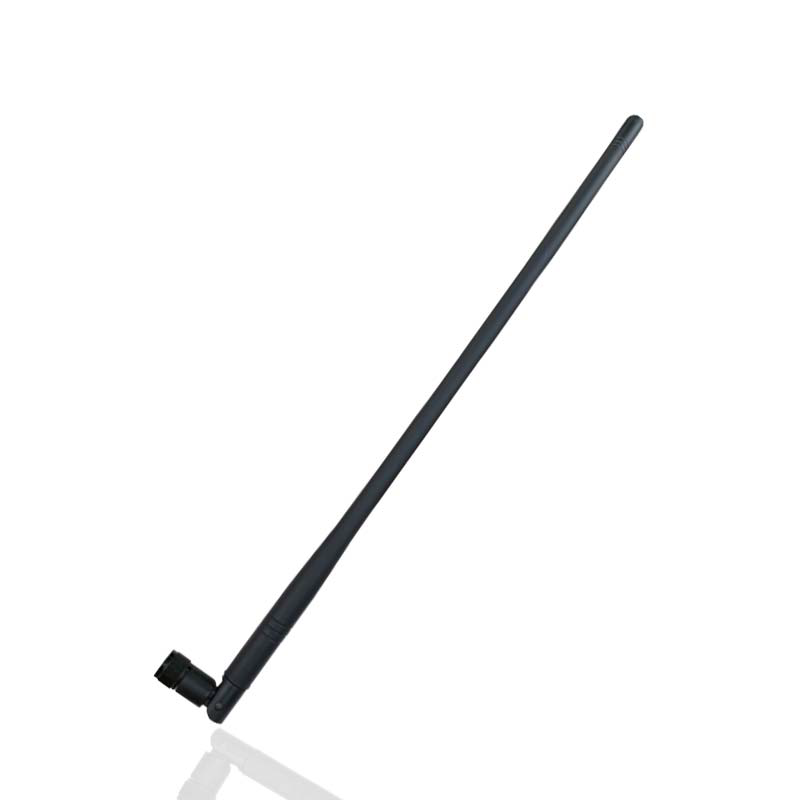

This is a high performance 868MHz LoRa Terminal mount antenna。
It can be mounted straight due to its hinged SMA(M) or RP-SMA(M) connector which comes as standard.
This antenna performs very well in free space, making it an ideal solution in areas where there may
be no ground plane.
Typical Applications include:Smart Metering ,Remote Monitoring, Industrial IoT ,Connected Enterprise
This distinctive and attractive rod antenna is ground plane independent, meaning it does not need to
be connected to the ground-plane of a device to radiate efficiently. On the other hand, the unique
cylindrically rod housing makes it better coordination with a device, thus avoiding a common problem
to slim-line PCB antennas causing seriously detuned by connecting to a device.
| Electrical | |
| Operating Frequency | 868MHz |
| Bandwidth | ±3MHz |
| Gain | 7dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector Type | RP-SMA Male |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x430mm |
| Weight | 55g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 7dBi |
