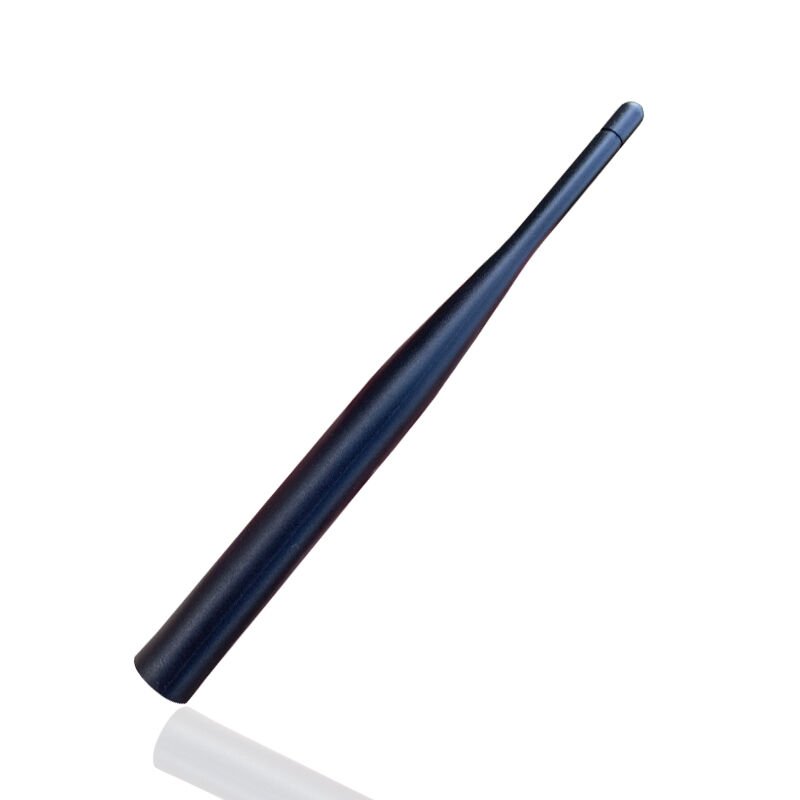

MRTK-Q868-L20DNQ, 868MHz Omnidirectional Esnek Terminal Anten, 2.5dBi, SMA-Erkek
| This is a high performance 868MHz Terminal mount antenna, it is 153mm tall and 13mm in diameter | |
| and can be mounted straight due to its hinged SMA(M) connector which comes as standard. | |
| This antenna performs very well in free space, making it an ideal solution in areas where there may | |
| be no ground plane. | |
| Typical Applications include:Smart Metering ,Remote Monitoring, Industrial IoT ,Connected Enterprise | |
| This distinctive and attractive rod antenna is ground plane independent, meaning it does not need to | |
| be connected to the ground-plane of a device to radiate efficiently. On the other hand, the unique | |
| cylindrically rod housing makes it better coordination with a device, thus avoiding a common problem | |
| to slim-line PCB antennas causing seriously detuned by connecting to a device. |
| Electrical | |
| Frequency Range | 865-868MHz |
| Bandwidth | ±3MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | PE |
| Mechanical | |
| Dimensions | Φ13x153mm |
| Weight | 15g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 2.5dBi |
