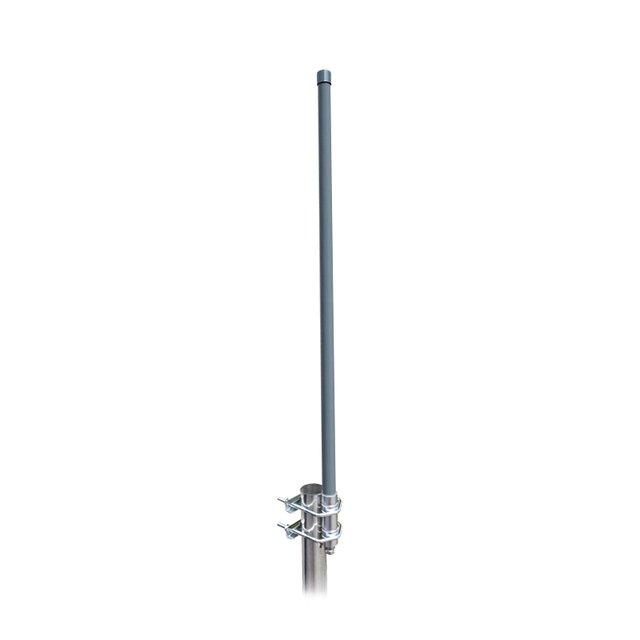

MRTK-Q24F10, 2.4GHz Fiberglass Antenna, 10dBi,N-Female
| 2.4 GHz omni directional wifi-wireless antennas for both consumer and commercial grade WiFi networks. | |
| Omni WiFi antennas, broadcast / propagate a full 360 degree radiation pattern, completely surrounding | |
| and saturating the radio signal in all directions outwards from the center of the antenna. | |
| Omni WiFi antennas are generally used in public WiFi applications, farms and ranches, public parks, | |
| zoos and recreation centers, along with most RV Parks and Marinas. | |
| An omni directional WiFi antenna, generally connects to an access point or router, via coaxial cable, | |
| or direct to the outdoor access point. |
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 10dBi |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 10.5° |
| V.S.W.R | ≤1.5 |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | Φ20x1000mm |
| Weight | 500g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 10dBi |
