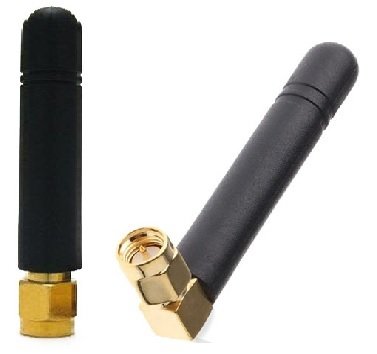

| 3G terminal Antenna is primarily designed for use with CDMA/GSM/3G modules . It does not | |
| require a ground plane to connect to. It has a quality robust housing for use with wireless terminals. | |
| The antenna has a SMA connector. It be used hinged 90 or 180 degrees. | |
| The antenna has a wide-band response and can also be used for other cellular and wireless | |
| applications such as GSM,LTE,UMTS. |
| Electrical | |
| Frequency Range | 900/2100MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | TPE |
| Mechanical | |
| Dimensions | Φ8x47mm |
| Weight | 10g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
| Kazanç | : | 2.5dBi |
