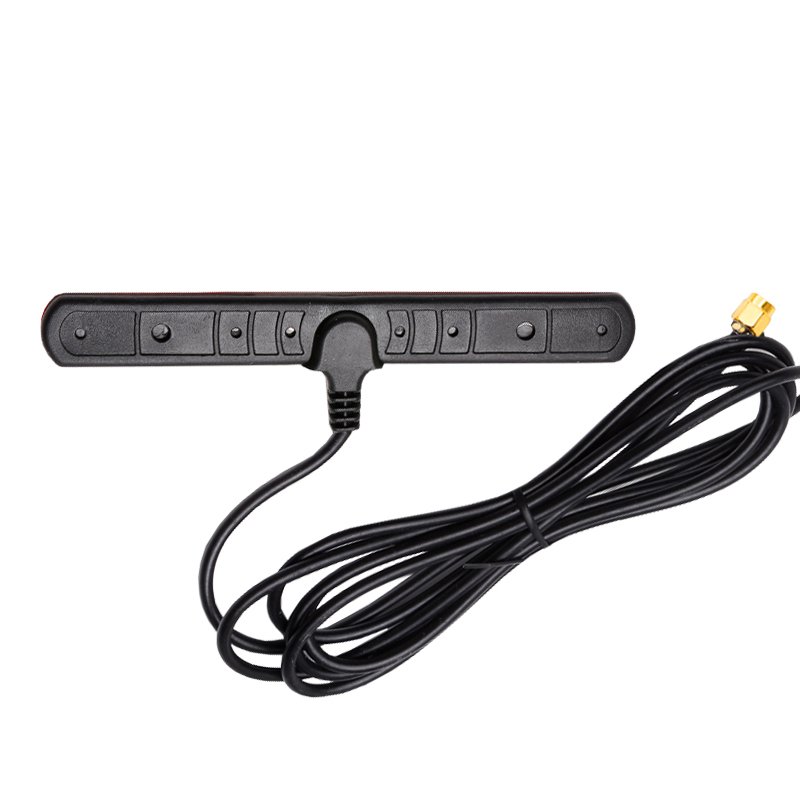

| It is a fully IP67 rated waterproof 4G external sticker mount antenna designed for use with all Cellular | |
| modules worldwide including new 4G bands. It has been designed as a fully IP67 waterproof rated | |
| enclosure and with extended wideband cellular frequency range coverage of 698-960/1710-2700MHz, | |
| ready for use at all cellular bands across 4G/3G/2G. | |
| Typical Applications Include:Transportation,Agriculture,Autonomous Vehicles/Robotics | |
| Providing excellent efficiency and gain, this low profile antenna is ideal in areas where space is at a | |
| premium. It an ideal solution for outdoor applications. | |
| It can be mounted on glass or plastic and comes with a strong 3M adhesive already adhered to the | |
| bottom side of the antenna for ease of installation | |
| The Cable length and connector type is fully customizable | |
| Electrical | |
| Frequency Range | 698-960/1700-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male(can be customization ) |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mount way | Sticker |
| Mechanical | |
| Dimensions | 12.8x107mm |
| Weight | 40g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
