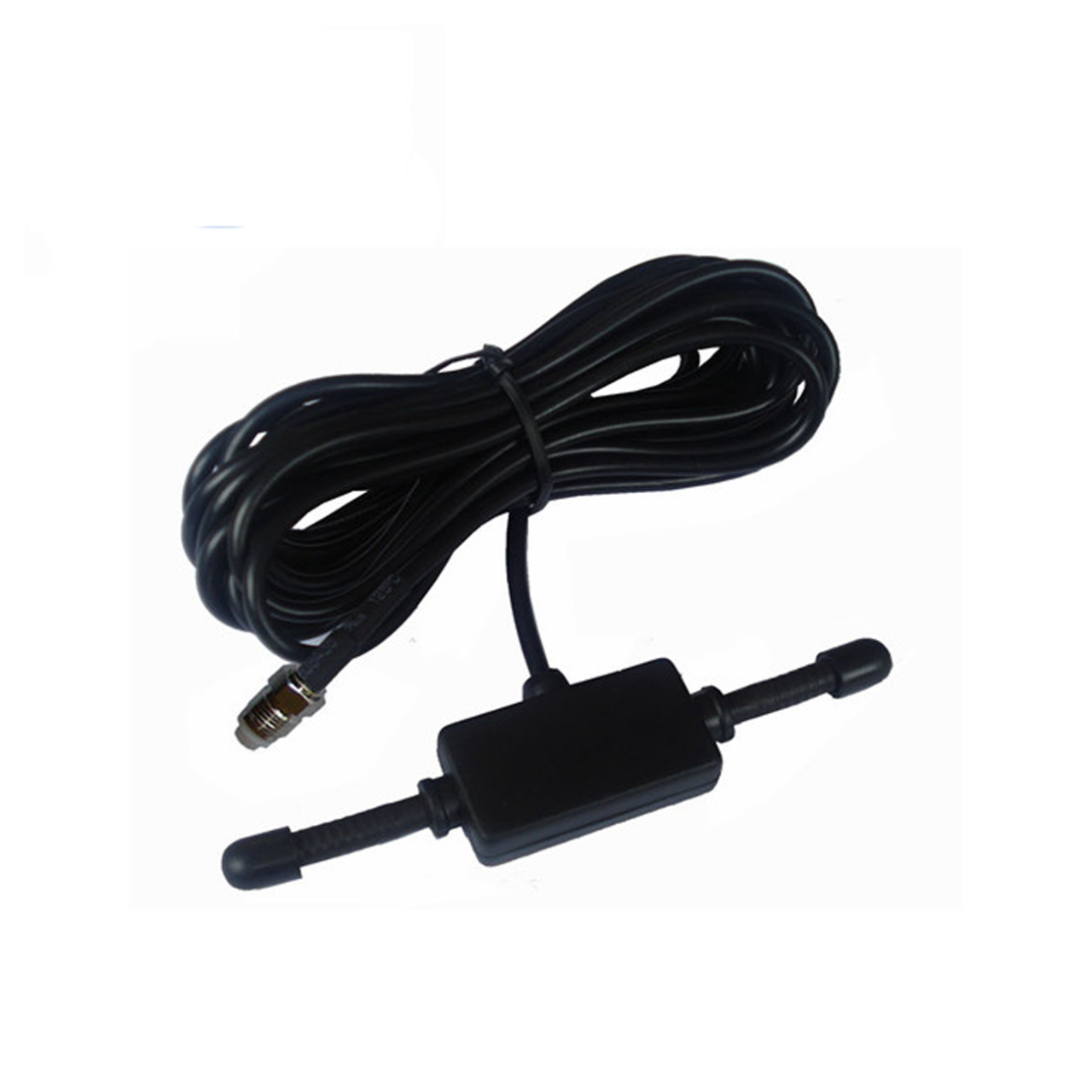

MRTK-QGCM02, 3G T Antenna, 3dBi, SMA/M,3m Rg174
| The Penta-band GSM Antenna is slim-line design allows for covert and convenient installation in | |
| automotive vehicles, its omni-directional gain across all bands ensures constant reception and | |
| transmission. | |
| It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. | |
| Cables and connectors are fully customizable. |
| Electrical | |
| Frequency Range | 824-960/1710-1880MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mount way | Sticker |
| Mechanical | |
| Dimensions | 18x95mm |
| Weight | 60g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
