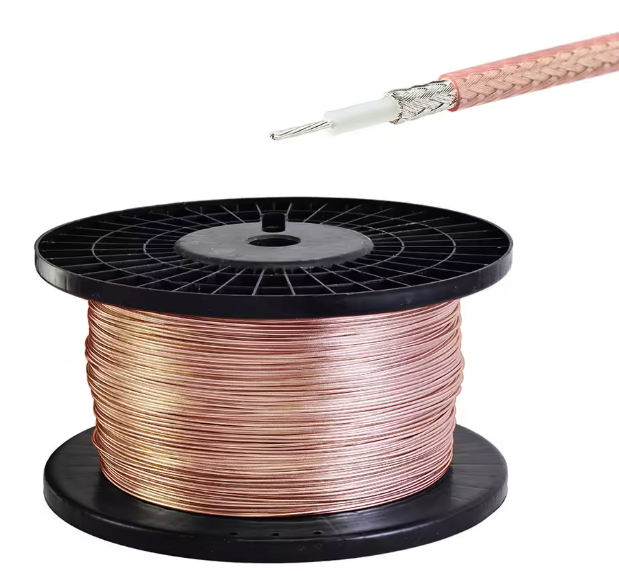

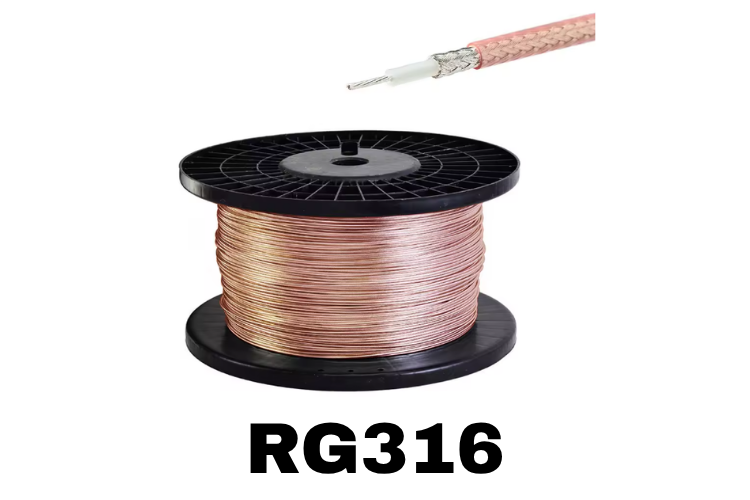

RF Coaxial 50 ohm cable RG316
PHYSICAL PROPERTIES
|
Material
|
Diameter(mm)
|
|
1.Inner conductor
|
SCCS
|
7*0.175
|
|
2.Insulation
|
PTFE
|
1.52
|
|
3.Outer conductor
|
1 : SC
|
1.95
|
|
4.Jacket
|
FEP
|
2.50
|
ELECTRICAL PROPERTIES
|
Nom. Capacitance Conductor to Shield(pF/m)
|
96.5
|
|
Nom. Characteristic Impedance(ohm)
|
50
|
|
Nom. Velocity of Propagation(%)
|
70
|
|
Min. Bend Radius(Install)(mm)
|
13
|
|
Voltage Rating(VMS)
|
1200
|
|
Max. Operating Frequency(MHz)
|
3000
|
|
Operating Temperature Rating(℃)
|
-55~+200
|
Nom. Attenuation
|
Frequency(MHz)
|
Nom. Attenuation(>dB/m)
|
|
100
|
0.262
|
|
400
|
0.531
|
|
1000
|
0.856
|
|
3000
|
1.532
|
