| SMA connectors are designed to satisfy the need for a durable,weatherproof, medium-size | |
| RF connector with consistent performance through 6 GHz. | |
| SMA connectors are built in male or female gender in standard polarity or reverse polarity threads, | |
| with 50 Ohm impedance. | |
| SMA connectors are available in straight or right angle versions, as well as, 4 hole flange, press in, | |
| bulkhead, 2 hole panel,4 hole panel or mount-less options. | |
| We offer SMA type connectors with standard or high performance levels built with brass or | |
| stainless steel bodies. |
| Electrical Specifications | |
| Frequency | DC to 6 GHz |
| Voltage Rating | 1000 VRMS (sea level) |
| Nominal Impedance | 50 ohms |

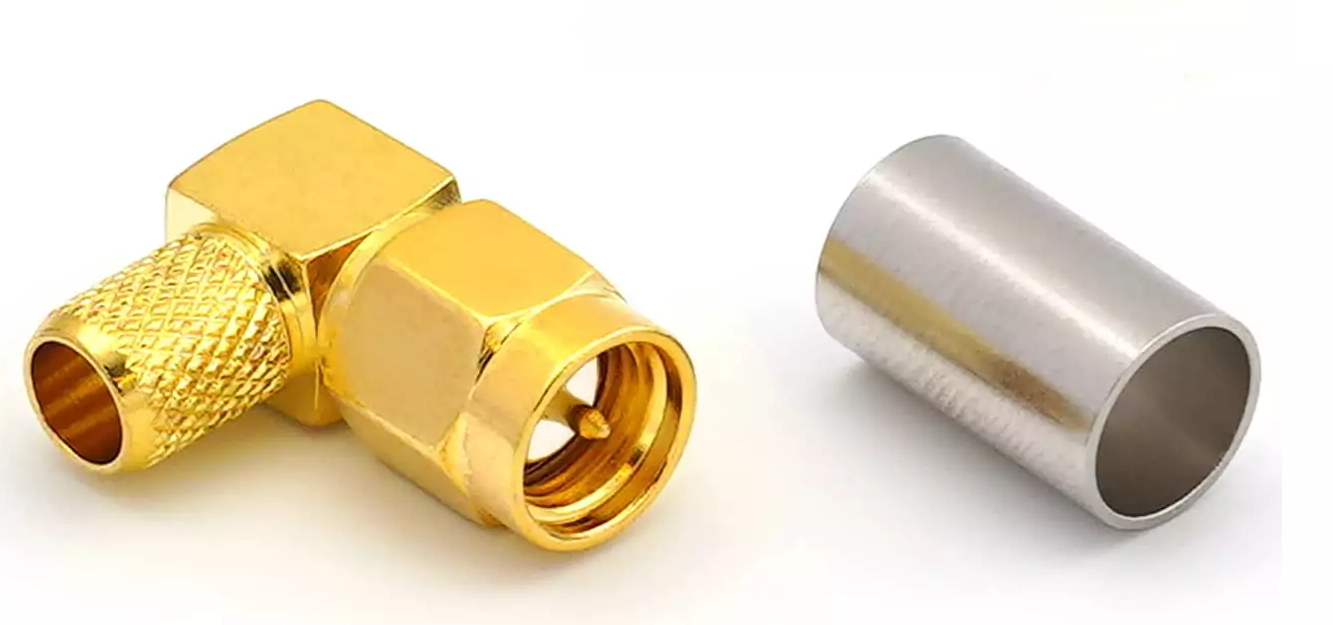

| Orientation | Right Angle |
| DWV | 2500 VRMS min. at 60 Hz (sea level) |
| Insulation Resistance | 5000 megaohms min. |
| Temperature Range | -65°C to +165°C |
| Termination Style | Cable crimp |
| MATERIALS | |
| Dielectrics | PTFE Fluorocarbon |
| Contacts (Female) | Beryllium copper, phosphor bronze |
| Male Outer Contacts | Phosphor bronze, brass |
| Gaskets | Silicone rubber, GR 50-60 |
| Other Metal Parts | Brass |
| PLATING | |
| Center Contacts | Silver, gold |
| Metal Parts | Passivated, nickel, silver, albaloy |
