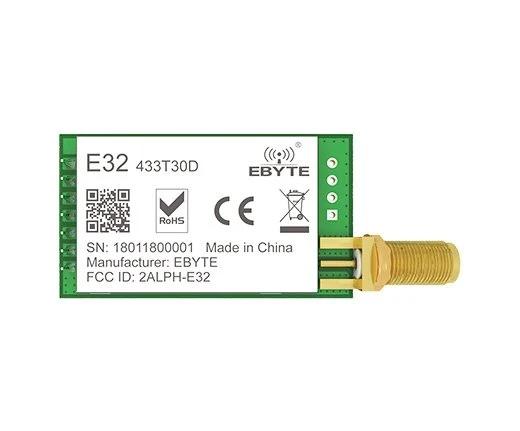

E32-433T30D -V8, 433MHz LoRa Module, SX1278, 30dBm, 7.5km, UART, DIP
Fiyat
16,00 USD + KDV
518,05 TL + KDV
EBYTE E32-433T30D-V8.X adopts SX1278 chip scheme, transmission power 1W, advanced LoRa spread spectrum technology, test distance 8000 meters, FEC forward error correction, strong anti-interference ability, and can communicate with other power versions of E32 in the same frequency band.
Type: Voltage Regulator
Model Number: E32-433T30D-V8.X
Supply Voltage: 2.8-5.5V
Dissipation Power: 30dBm
Customized: Yes
Operating Temperature: -40-+85℃
Package: SMD
RF IC: SX1278
Size: 24*43mm
Frequency: 433MHz (410-441)
Distance: 7500m
Interface: UART
RF Connector: SMA
| Main parameter | Description |
Remark |
| Reference distance |
7.5km |
Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2m，air data rate: 2.4 kbps |
| FIFO |
256Byte |
Maximum length of single send |
| Crystal Oscillator |
32MHz |
|
| Protocol |
LoRaTM(recommended) |
FSK/GFSK/MSK/GMSK/OOK |
| Package |
SMD |
|
| Interface |
1.27mm |
Sample hole |
| Communication interface |
SPI |
0～10Mbps |
| Size |
14 * 20 mm |
- |
| Antenna |
Sample hole / IPEX |
50 ohm impedance |
| Main parameter | Min | Type | Max | Unit | Remark |
| Operating voltage |
1.8 |
3.3 | 3.6 | V | ≥5.5 V ensures output power |
| Communication level |
- | 3.3 |
- | V | - |
| Operating temperature |
-40 |
- | +85 |
℃ |
Industrial grade |
| Operating frequency |
410 |
- | 493 |
MHz |
- |
| TX current |
- | 110 | - | mA |
- |
| RX current |
- | 17 |
- | mA |
- |
| Sleep current |
- | 2 | - | μA |
- |
| Max TX power |
- | 20 | - | dBm |
- |
| Receiving sensitivity |
-145 |
-147 |
-148 |
dBm |
Air data rate is 1.2 kbps |
