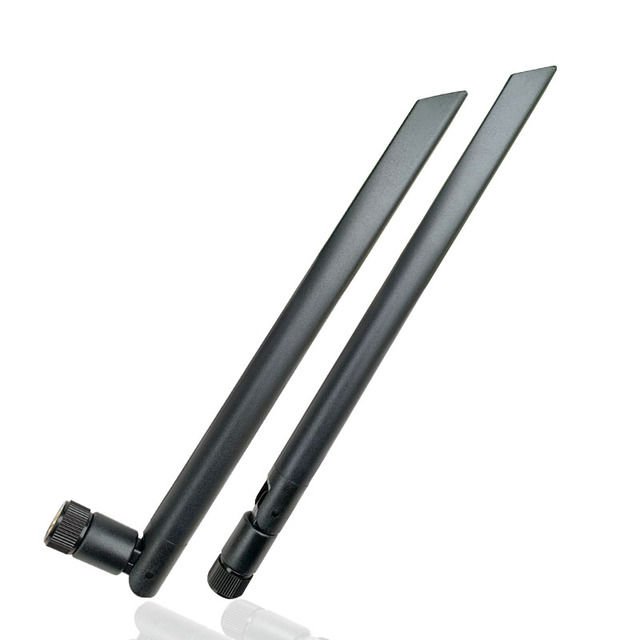

MRTK-Q7038-L20FB, 5G Ultra-Wideband Antenna, 3dBi, SMA-Male
| The LTE Blade Dipole Antenna is a compact antenna with high peak gain，high efficiency and cost | |
| effective.Covers all common 4G/3G/2G and LTE bands,Tilt / Swivel Joint for optimum positioning | |
| The antenna blade itself is only 20cm long .No tuning or ground plane are required. | |
| The LTE Blade Dipole Antenna greatly reduces the risk of implementation, making it a true plug and | |
| go solution.It covers the LTE & NB-IoT bands while still performing well in the sub 1 GHz bands. | |
| The antenna is well suited for use with both plastic and metal enclosures, and its affordable price point, | |
| small size and modern design offers customers a low profile option for a more aesthetically pleasing | |
| product. |
| Electrical | |
| Frequency Range | 698-960/1710-3800MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x200mm |
| Weight | 21g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
