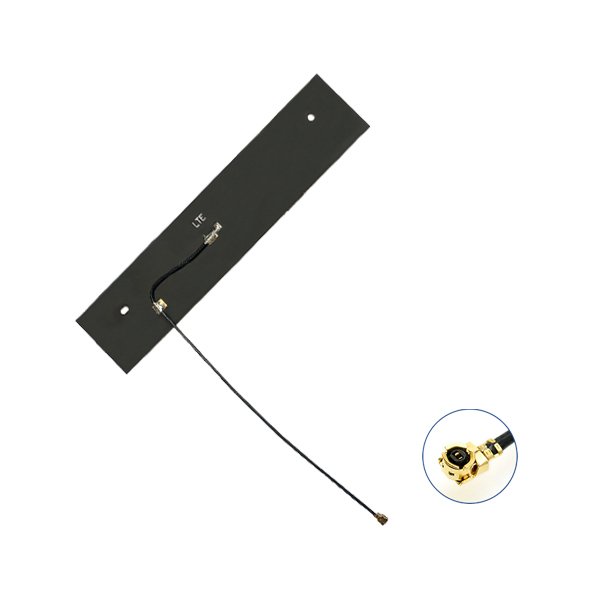

MRTK-Q7027N27, LTE Flexy Antenna, 3dBi, IPEX,
| PC Flexible antennas excel in wideband cellular 2G/3G/4G for Cellular IoT (LTE-M/Cat-M1, NB-IoT) | |
| applications, with product specialization in Low-power wide-area (LPWA) applications such as | |
| LoRaWAN® and Sigfox®, GNSS/Navigation, and WiFi/WLAN and Bluetooth®. | |
| FPC antennas provide a ground plane independent dipole embedded antenna solution comparable | |
| in performance to an external antenna. The FPC series' flexibility and adhesive backing makes | |
| it easy to mount in unique and custom enclosures, while enabling an environmentally sealed enclosure | |
| and protection from tampering or accidental antenna damage. | |
| Connection is made to the radio via a 100 mm long, 1.13 mm coaxial cable terminated in an | |
| MHF1/U.FL compatible plug connector. | |
| Compact, low-profile 0.2 mm height MHF/U.FL compatible plug (female socket) on 100 mm of 1.13 mm | |
| coaxial cable.Flexible to fit in challenging enclosures | |
| Adhesive backing permanently adheres to nonmetal enclosures using 3M adhesive |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Cable Type | 1.13cable |
| Cable Length | 10cm-20cm-30cm |
| Connector | IPEX |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 120x27x0.1mm |
| Weight | ≤10g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
