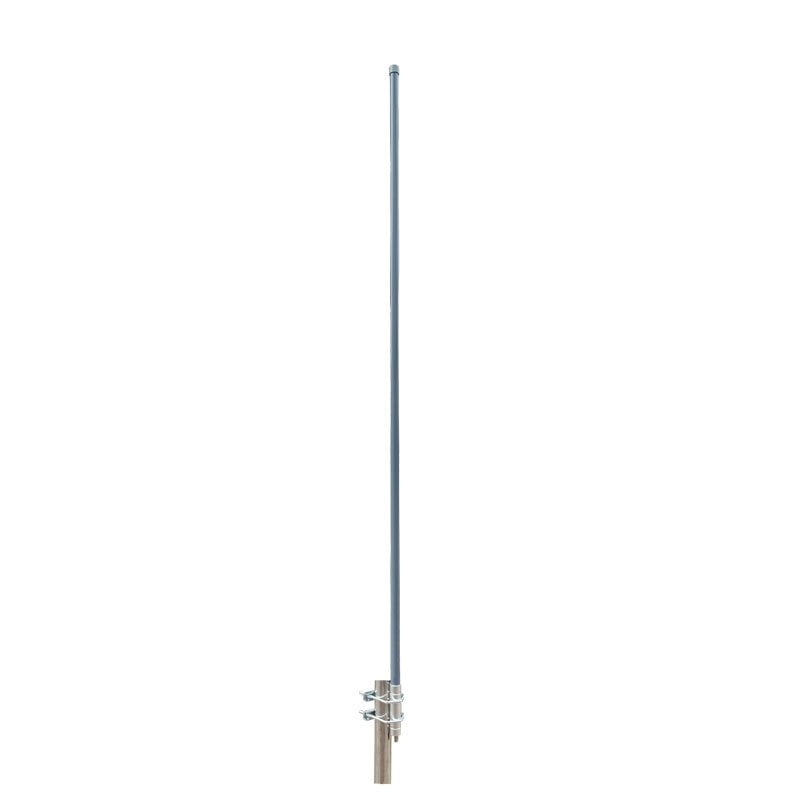

MRTK-Q868F06, 868MHz 6dBi Fiberglass Omni-Direction Anten,
Fiyat
51,00 USD + KDV
1.565,19 TL + KDV
1.647,57 TL + KDV
%5
Lütfen Dikkat! Antenlerimizde renk farkındalığı olabilir. Şu anda stoklarımızda bulunan antenlerimiz rengi GRİ 'dir. Bütün renklerdeki antenlerimiz aynı kalite ve özelliklere sahiptir.
| RFID Antenna gives you a wide read field and high-speed RF signal conversion, | |
| so data capture is fast and accurate, even in expansive, high-demand environments. | |
| It is easy to mount on the pole of outdoor, and its rugged white housing is at home in both | |
| customer-facing and industrial settings. So you can achieve superior read zones around | |
| stockroom shelves, warehouse doorways and dock platforms – anywhere boxes and pallets are | |
| moving into and out of your facility. |
| Electrical | |
| Frequency Range | 865-868MHz |
| Band width | 3MHz |
| Gain | 6dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 16° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female or N Male |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |

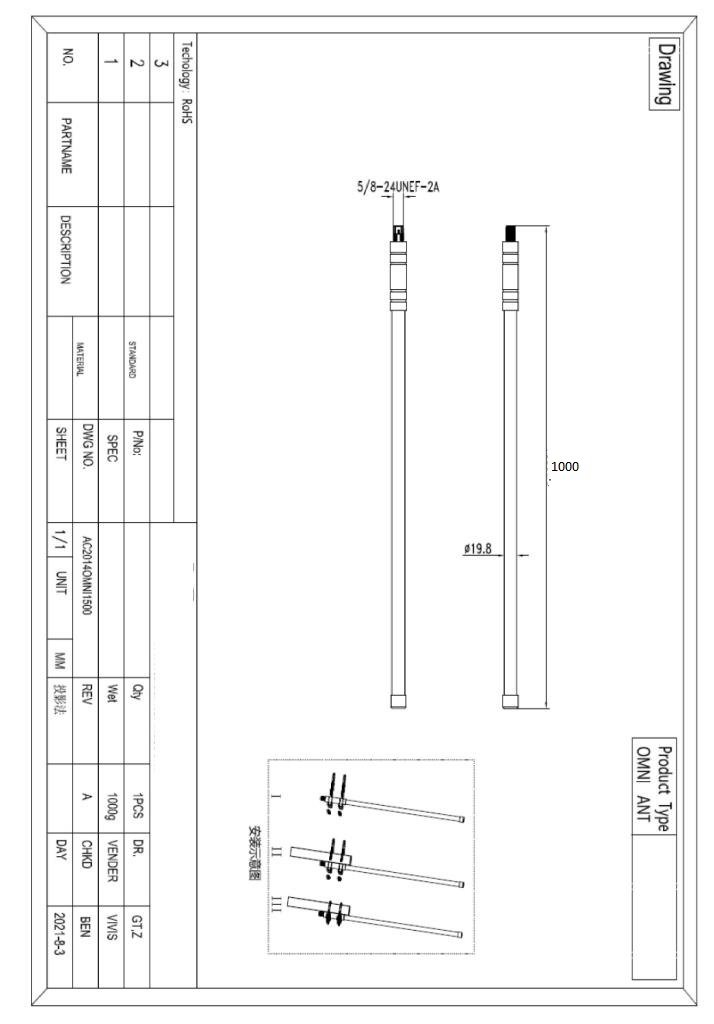

| Dimensions | Φ38x1000mm |
| Weight | 1.5KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 6dBi |
