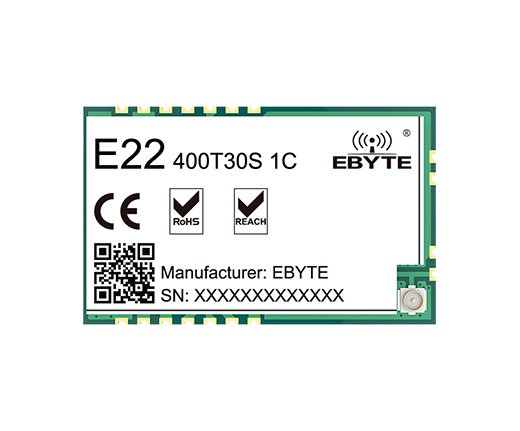

E22-T Serisi , LoRa Modül E22-400T30S1C
E22-400T30S1C
[IC]：SX1262
[Frequency]：410.125～493.125MHz
[Power]：30dBm
[Distance]：10km
[Size]：25*40.5mm
[Introduction]：E22-400T30S1C is a wireless serial port module (UART) based on ASR6505 RF chip. It has multiple transmission modes, LoRa spread spectrum technology, TTL level output, compatible with 3.3V and 5V IO port voltage.
| Model | IC | Interface | Frequency Hz | Power dBm | Distance km | Air Rate (bps) | Package | Size (mm) | Feature | Manual |
| E22-400T22D | UART | SX1268 | 433M 470M | 22 | 5,0 | 0.3~62.5k | DIP | 21*36 | New generation of LoRa spread spectrum technology | ✔ |
| E22-400T22DC | UART | SX1262 | 433M 470M | 22 | 5,5 | 0.3~62.5k | DIP | 21*36 | New generation LoRa modulation technology | ✔ |
| E22-400T22S1B | SX1268 | UART | 433M 470M | 22 | 5,0 | 0.3~62.5k | SMD | 16*26 | Low consumption, anti-interference | ✔ |
| E22-400T22S1C | UART | SX1262 | 433M 470M | 22 | 5,5 | 0.3~62.5k | SMD | 16*26 | LoRa Automatic relay | ✔ |
| E22-400T30D | UART | SX1268 | 433M 470M | 30 | 8,0 | 0.3~62.5k | DIP | 24*43 | New LoRa Spread Spectrum,Automatic relay,Wireless configuration | ✔ |
| E22-400T30DC | UART | SX1262 | 433M 470M | 30 | 10,0 | 0.3~62.5k | DIP | 24*43 | New generation LoRa modulation technology | ✔ |
| E22-400T30S1B | SX1268 | UART | 433M 470M | 30 | 10,0 | 0.3~62.5k | SMD | 40.5*25 | Low consumption, anti-interference | ✔ |
| E22-400T30S1C | UART | SX1262 | 433M 470M | 30 | 10,0 | 0.3~62.5k | SMD | 25*40.5 | LoRa spread spectrum technology | ✔ |
| E22-900T22D | UART | SX1262 | 868M 915M | 22 | 5,0 | 0.3~62.5k | DIP | 21*36 | A new generation of LoRa spread spectrumtechnology | ✔ |
| E22-900T22S1B | SX1262 | UART | 868M 915M | 22 | 5,0 | 0.3~62.5k | SMD | 16*26 | Low consumption, anti-interference | ✔ |
| E22-900T22S1C | UART | SX1262 | 868M 915M | 22 | 7,0 | 0.3~62.5k | SMD | 16*26 | LoRa Automatic relay | ✔ |
| E22-900T30S1B | SX1262 | UART | 868M 915M | 30 | 10,0 | 0.3~62.5k | SMD | 40.5*25 | Low consumption, anti-interference | ✔ |
| Operating parameter | Performance |
Remark |
| Operating frequency |
410.125~493.125MHz | Support ISM band |
| Tx power | 30 dBm | - |
| Receiving sensitivity | -148dbm |
Air data rate is 2.4kbps |
| Air data rate | 0.3k~62.5kbps | Controlled via user’s programming |
| Distance for reference | 10000m | Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps |
| Operating parameter | Performance |
Remark |
| Size |
40.5*25 mm |
- |
| Antenna | IPEX/stamp hole | 50 ohm impedance |
| Communication interface | UART |
- |
| Package | SMD | - |
| Main parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating voltage |
2.3 | 5.0 | 5.5 | V | ≥5.0 V ensures output power |
| Communication level | - | 3.3 | - | V | For 5V TTL, It is recommended to add level conversion |
| TX current | - | 610 |
- | mA | Instant power consumption |
| RX current | - | 17 | - | mA |
- |
| Sleep current | - | 2 | - | μA | Software is shut down |
| Operating temperature |
-40 | - |
+85 | ℃ | - |
| No. |
Name | Direction | Function |
| 1 | M0 |
Input （weak pull-up） |
Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 2 | M1 |
Input （weak pull-up） |
Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 3 | RXD | Input |
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output |
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output. |
| 5 | AUX |
Output |
To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level.Can be configured as push-pull output (can be suspended). |
| 6 | VCC |
Input |
Power supply ：3.3~ 5.5V DC. |
| 7 | GND | Input |
Ground. |
| 8 | NRST |
Input |
Module reset pin, low reset |
| 9 | GND | Input |
Ground. |
| 10 | NC | Input |
Can be suspended. |
| 11 | NC | Input |
Can be suspended. |
| 12 | NC | Input/output |
Can be suspended. |
| 13 | NC |
Input/output |
Can be suspended. |
| 14 | NC | Input/output |
Can be suspended. |
| 15 | GND | - |
Ground. |
| 16 | GND | - |
Ground. |
| 17 | GND | - |
Ground. |
| 18 | ANT | Output |
High frequency signal output, 50Ω characteristic impedance. |
