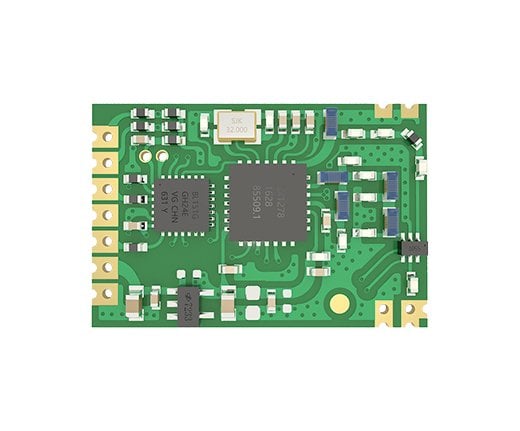

E32-T Serisi , LoRa RF Modül E32-433T20S1
E32-433T20S1
[IC] : SX1278
[Frequency] : 410~441MHz
[Power] : 10~20dBm
[Distance] : 3.0km
[Interface] : UART
[Weight] : 1.2±0.1g
[Introduction] : E32-433T20S1 is a wireless transceiver module based on SX1278 of SEMTECH (it can be transmitter and receiver both). It adopts LoRa spread spectrum technology, with this technology the transmitting distance and diffraction of the module improved greatly compared with traditional FSK.
| Model | Interface | IC | Frequency Hz | Power dBm | Distance km | Air data rate | Package | Size (mm) | Feature | Manual |
| E32-400T20S3 | UART | SX1278 | 433M 470M | 20 | 3,0 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ✔ |
| E32-433T20DC | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ✔ |
| E32-433T20DT | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ✔ |
| E32-433T20S | UART | SX1278 | 433M | 20 | 5,0 | 2.4k～19.2k | SMD | 16 * 26 | LoRa Spread Spactrum Technology | ✔ |
| E32-433T20S1 | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | SMD | 17*25.5 | LoRa spread spectrum | ✔ |
| E32-433T20S2T | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | SMD | 17*30 | LoRa spread spectrum | ✔ |
| E32-433T27D | UART | SX1278 | 433M | 27 | 5.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| E32-433T30D | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| E32-433T30S | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | SMD | 25*40.5 | LoRa spread spectrum | ✔ |
| E32-868T20D | UART | SX1276 | 868M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ✔ |
| E32-868T20S | UART | SX1276 | 868M | 20 | 3,0 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ✔ |
| E32-868T30D | UART | SX1276 | 868M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| E32-868T30S | UART | SX1276 | 868M | 30 | 8.0 | 0.3k~19.2k | DIP | 25*40.3 | LoRa spread spectrum Continuous transmiss | ✔ |
| E32-900T20S | UART | SX1276 | 868M 915M | 20 | 5,5 | 0.3k~19.2k | SMD | 16*26 | LoRa spread spectrum | ✔ |
| E32-900T30D | UART | SX1276 | 868M 915M | 30 | 8,0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| RF Parameter | Value |
Remark |
| Working frequency |
410~441 MHz |
Default: 433MHz |
| Transmitting power | 10~20 dBm |
Default: 20dBm（About 100mW） |
| Receiving sensitivity | -146 dBm |
Air data rate: 0.3kbps |
| Air data rate | 0.3k~19.2kbps |
Default: 2.4kbps |
| Test distance | 3000 meter |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
| Hardware Parameter | Value |
Remark |
| Size |
17 * 25.5 mm |
|
| Antenna type | Stamp hole |
|
| Communication interface | UART |
Baud rate: 1200~115200, default: 9600 |
| Package | SMD |
|
| Buffer | 512 bytes buffer |
Automatically sub-packaging with 58 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.3 | 5.0 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current |
100 |
110 | 120 | mA | 20dBm（100mW） |
| Receiving current | 13 |
14 | 15 | mA |
|
| Sleep current | 3 | 4 | 5 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
| Pin No. |
Pin Item | Pin Direction | Pin Application |
| 1 | M0 |
Input （weakpull-up） |
Work with M1 & decide the four operating modes. Floatingis not allowed, can be ground. |
| 2 | M1 |
Input （weakpull-up） |
Work with M0 & decide the four operating modes. Floatingis not allowed, can be ground. |
| 3 | RXD | Input |
TTL UART inputs, connects to external TXD (MCU, PC) output pin. Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output |
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output. |
| 5 | AUX | Output |
To indicate module's working status.To wake up the external MCU, during the procedure of self-check initialization, the pin outputs low level.Can be configured as open-drain output or push-pull output. Floating is allowed. |
| 6 | VCC | Input | Voltage reference of module, power supply 2.3V ~ 5.5V DC. |
| 7 | GND | Input | Ground |
| 8 | GND | Output | Reference places of high frequency signal output. |
| 9 | ANT |
Output | Antenna interface (high frequency signal output). |
| 10 | GND | Input | Ground |
| 11 | GND | Input | Ground |
